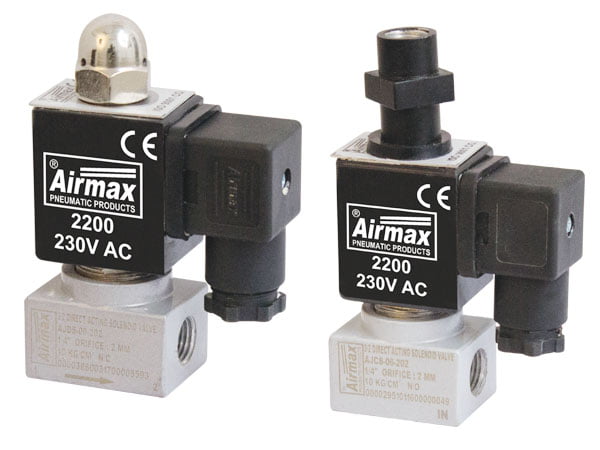

Optimize Your Pneumatic System with 3/2 Way Direct Acting Solenoid Valves
The 3/2 Way Direct Acting Solenoid Valves are available in different models, sizes, pressure, temperature and other specifications. These valves are used for compressed air (filtered and lubricated) and have a bubble tight leakage. They can withstand temperatures up to 55 °C. The coils are available in 24V, 48V, 110V and 230V DC.
Contact Airmax Pneumatics today to discuss your specific needs and explore how the 3/2-Way Direct-Acting Solenoid Valve can optimize your fluid control operations. The RM series family of solenoid valves grows with the introduction of the 3/2 Way Direct Acting Solenoid Valve, joining the popular 2/2 Way Direct Acting Solenoid Valve model to provide a comprehensive range of solutions for various applications.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications |
| Product Name |
3/2 Way Direct Acting Solenoid Valve |
| Model |
AJDS-08-202 |
AJDS-09-202 |
AJDS-10-202 |
| Size |
1/4″ BSP |
| Orifice |
2.5 mm |
2 mm |
1.2 mm |
| Pressure |
7 Kg/cm² |
10 Kg/cm² |
20 Kg/cm² |
| Temperature |
5 to 55 ˚C |
| Leakage |
Bubble Tight |
| Flow |
180 |
140 |
60 |
| Media |
Air ( Filtered & Lubricated ) |
| Coil Voltage |
24V, 48V, 110V, 230V DC |
