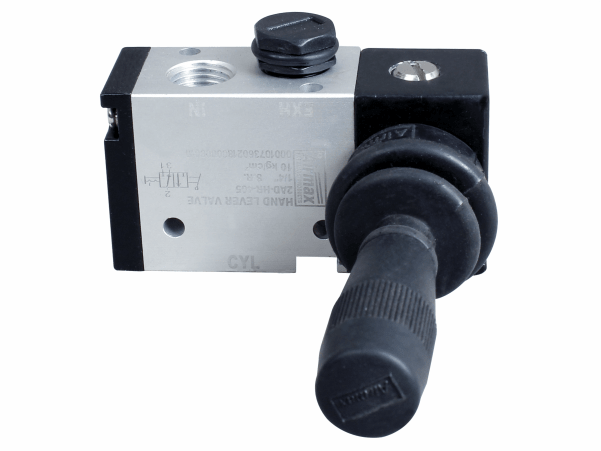

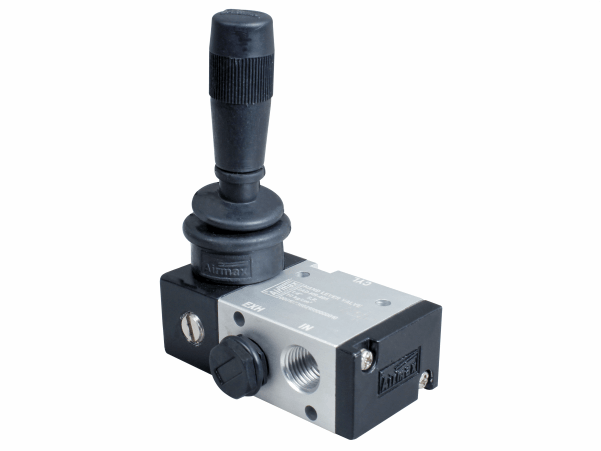

The 3/2 Way Hand Lever Valve is a type of valve used to control the flow of compressed air in pneumatic systems. It is compact and has a maximum flow rate of 123 liters per minute. The valves are available in two sizes, 1/4 inch and 1/2 inch. They are also available in two different types, spring return and detent. The valves have a pressure rating of 10 kg/cm² and can be used in temperatures from 5 to 55 degrees Celsius.
Compare this product to our one of the best-performing model RM series 3/2 way hand lever valve to see the differences in features and applications.
- Compact Design with Maximum Flow
- Aluminum Extruded Body with Anodized
| Technical Specifications |
| Product Name | 3/2 Way Hand Lever Valve Spring Return / Detent |
| Model | 2AD-HR-405 | 2AD-HR-407 | 2AD-HD-455 | 2AD-HD-457 |
| Size | 1/4″ | 1/2″ | 1/4″ | 1/2″ |
| Type | Spring Return | Detent |
| Design | Spool type |
| Pressure | 10 Kg/cm² |
| Temperature | 5 to 55 ˚C |
| Flow rate in SCFM Lts. / Min @6 KG | 42 | 123 | 42 | 123 |
| Recommended Oil For Lubrication | ISO VG32 |
| Leakage | Bubble Tight |
| Media | Compressed Air ( Filtered & Lubricated ) |
| Weight | 0.25 | 0.7 | 0.25 | 0.7 |
