Product Details
| Model | SIKOPP-3 |
|---|---|
| Size | 1/4" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

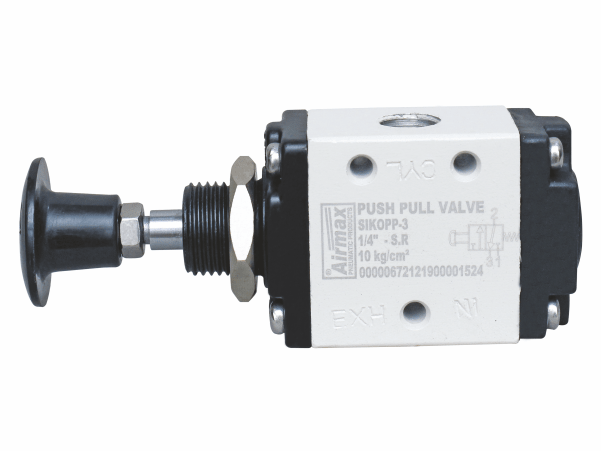

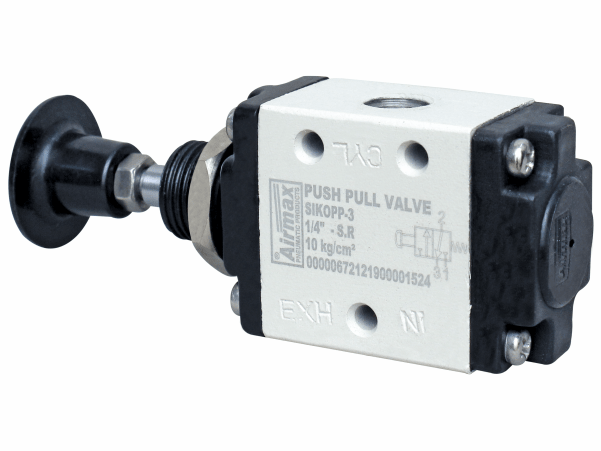

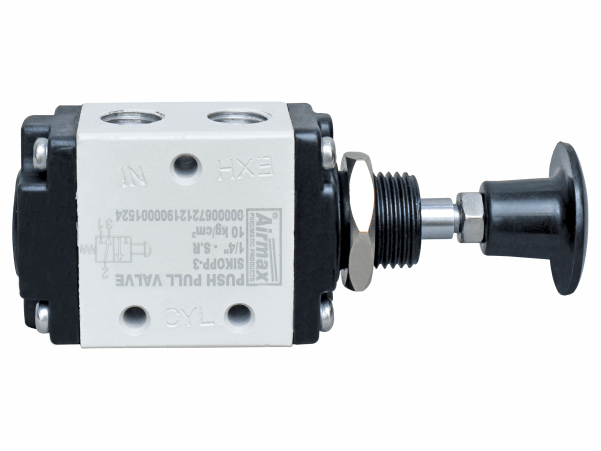

3/2 Way Push Pull Valve
Improve the performance of your system with the 3/2 Way Push-Pull Valve, which is designed for precision and durability. As a premier manufacturer and exporter of 3/2 Way Push-Pull Valves, we have been serving customers from Ahmedabad, India since 1992. This valve’s sturdy Aluminum Press Die-Cast body and high-quality Nitrile seals provide dependable operation even under high pressure (up to 10 Kg/cm²).
It is suitable for regulating pneumatic circuits since it operates smoothly, efficiently, and needs little maintenance. This valve delivers accurate performance in industrial and automation applications.
When you need rugged reliability, the 3/2 Way Push Pull Valve is your go-to, but the AD – 20 series 3/2 way push pull valve can support higher precision tasks.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications | |||||||
| Product Name | 3/2 Way Push Pull Valve | ||||||
| Model | SIKOPP – 3 | ||||||
| Size | 1/4″ | ||||||
| Design | Spool type, | ||||||
| Pressure | Upto 10 Kg/cm² | ||||||
| Temperature | 80 °C | ||||||
| Leakage | Bubble Tight | ||||||
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) | ||||||
| Weight (Kg) | 0.2 | ||||||
