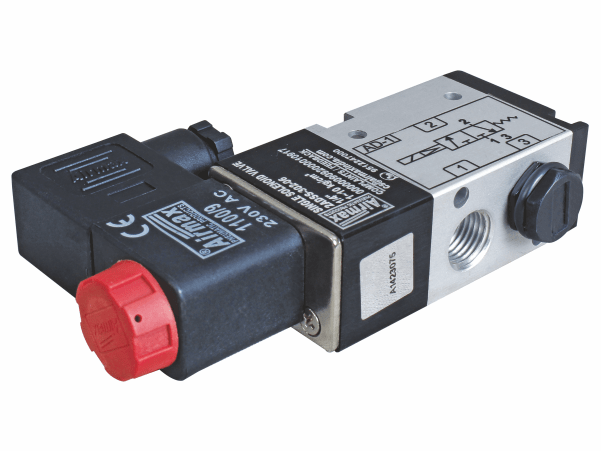

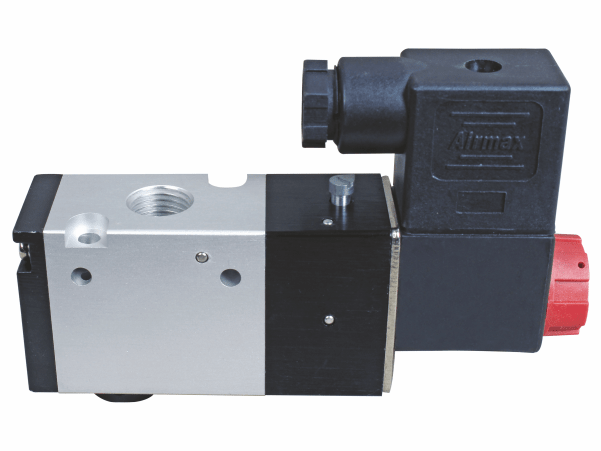

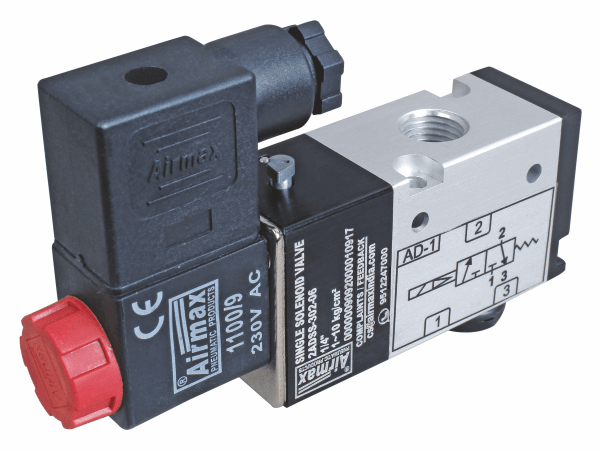

Overview of 3/2 Way Single Solenoid Valve
The purpose of this 3/2 way single solenoid valve is to regulate air flow in a pneumatic system, providing effective operation. It is a 3 way single solenoid valve that is small and strong, making it appropriate for a variety of automation and industrial applications. To suit your unique requirements, the valve comes in two sizes (1/4′′ and 1/2′′) and a range of voltages (12V, 24V, 48V, 110V, and 230V). For accurate operation in a variety of settings, the valve also has a rated temperature range of 5 to 55°C and a rated pressure of 1 to 10 Kg/Cm².
Seeking a more compact version of our popular model at lower price? Check out this AMV series 3/2 Way Single Solenoid Valve money-saving design.
- Compact Design with Maximum Flow
- Design Suitable For Gang Manifold upto 12 Valves or Above In Single Manifold
- Push & Rotate Lockable Combined Manual Override Function
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name |
3/2 Way Single Solenoid Valve |
| Model |
2ADSS – 302 |
2ADSS – 304 |
| Size |
1/4″ |
1/2″ |
| Design |
Spool type, Internal Pilot Operated (External Pilot On Request) |
| Pressure |
1 to 10 Kg/cm² |
| Temperature |
5 to 55 ˚C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 Class F |
| Connector |
Din 43650 B |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC/DC) 50/60 Hz ( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) |
0.29 |
0.585 |
