Product Details
| Model | 2ARMDR |
|---|---|
| Size | 1/4", 1/2" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

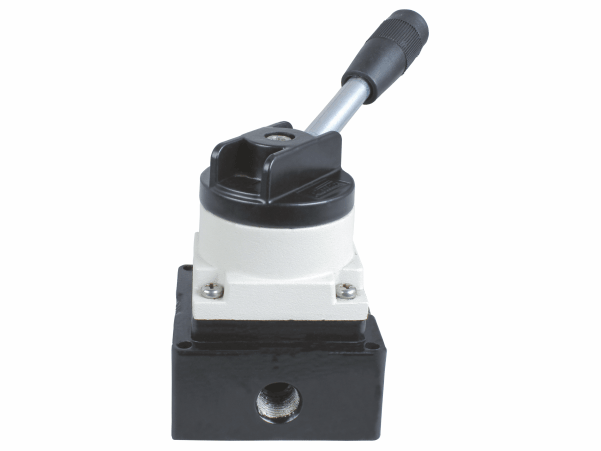

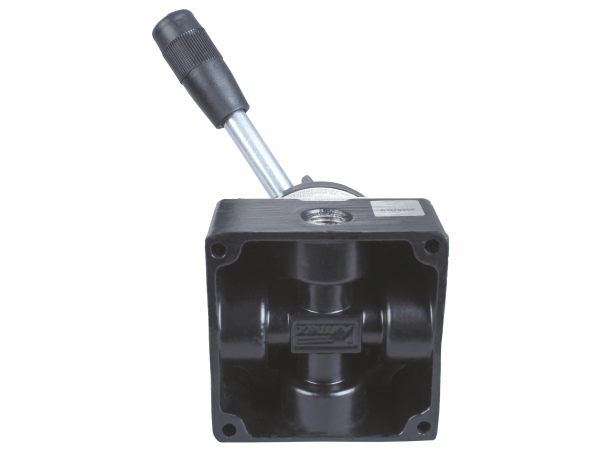

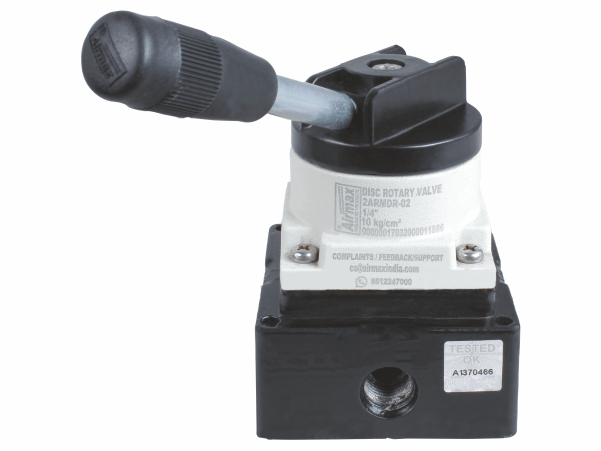

4 Way 3 Position Disc Rotary Valve
Rotary Precision with our 4-Way, 3-Position Disc Rotary Valve
Airmax, a company based in Gujarat, India manufactures 4 Way 3 Position Disc Rotary Valves used to control the flow of compressed air in pneumatic systems [S1,S10]. These valves are known for their durability due to the heavy and powder coated aluminium die cast body [S6,S7]. They come equipped with nitrile seals and can withstand pressures up to 10 kg/cm² and temperatures up to 80°C [S7,S8]. The valves are available in two sizes, 1/4″ and 1/2″, and have a flow rate of 1100 or 2100 NLPM at 5 BAR [S19,S38]. Let me know if you would like me to rewrite this in a different way.
When selecting pneumatic components, consider how the 4 Way 3 Position Disc Rotary Valve can meet essential needs alongside the specialized capabilities of the AD – 20 series.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Superior High Grade Seals
- Poppet design easy to maintenance
| Technical Specifications | |||||||||||
| Product Name | 4 Way 3 Position Disc Rotary Valve | ||||||||||
| Model | 2ARMDR – 02 | 2ARMDR – 04 | |||||||||
| Size | 1/4″ | 1/2″ | |||||||||
| Orifice | 7 | 10 | |||||||||
| Design | Poppet Type, | ||||||||||
| Pressure | 10 Kg/cm² | ||||||||||
| Temperature | 80 °C | ||||||||||
| Leakage | Bubble Tight | ||||||||||
| Media | Compressed Air ( Filtered & Lubricated ) | ||||||||||
| Flow (NLPM) at 5 BAR | 1100 | 2100 | |||||||||
| Weight (Kg) | 0.49 | 0.46 | |||||||||
