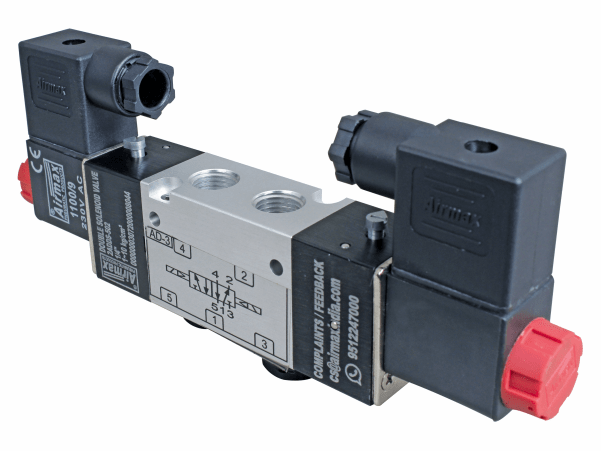

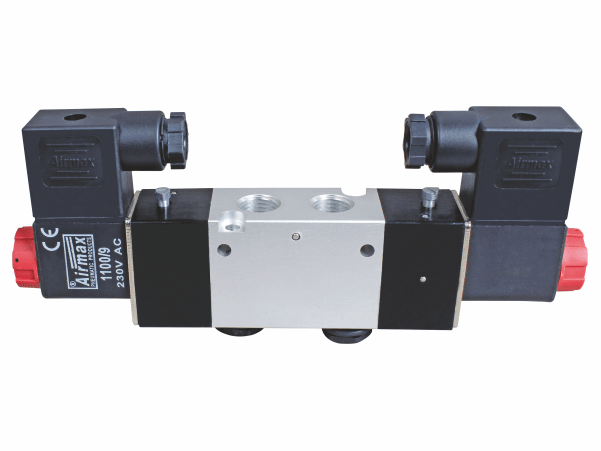

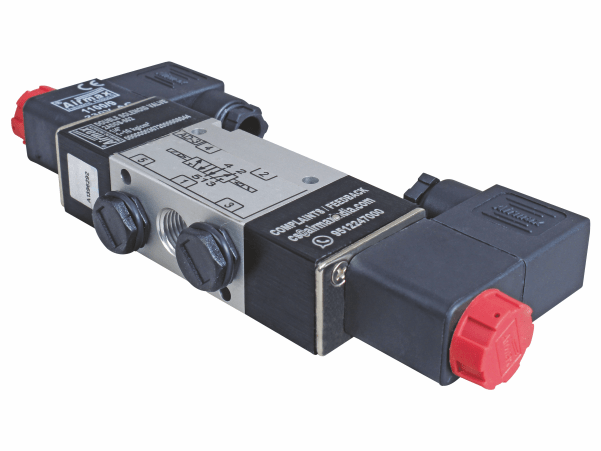

Airmax Pneumatics is a major manufacturer, producer, and exporter of 5/2 Way Double Solenoid Valves for controlling compressed air in pneumatic systems. These valves come in 1/4″ and 1/2″ diameters, with a pressure rating of 1 to 10 Kg/cm² and a temperature range of 5 to 55°C. They have a compact design for maximum flow, bubble-tight sealing, several coil voltage options, and a continuous duty cycle. The aluminum extruded body with anodization is durable and corrosion resistant, and the IP65 grade protects against dust and water.
Furthermore, the design is appropriate for gang manifold setups, with up to 12 valves or more in a single manifold, making it excellent for complex pneumatic systems that require centralized control.
If you’re exploring various options for your pneumatic setup, we recommend checking out our blog on Different Types of Pneumatic Valves to better understand how the 5/2 Way Double Solenoid Valve fits within the broader range of control solutions.
- Compact Design with Maximum Flow
- Design Suitable For Gang Manifold up to 12 Valves or Above In Single Manifold
- Push & Rotate Lockable Combined Manual Override Function
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name |
5/2 Way Double Solenoid Valve |
| Model |
2ADSS – 502 |
2ADSS – 504 |
| Size |
1/4″ |
1/2″ |
| Design |
Spool type, Internal Pilot Operated (External Pilot On Request) |
| Pressure |
1 to 10 Kg/cm² |
| Temperature |
5 to 55 ˚C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 Class F |
| Connector |
Din 43650 B |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) |
0.47 |
0.955 |
