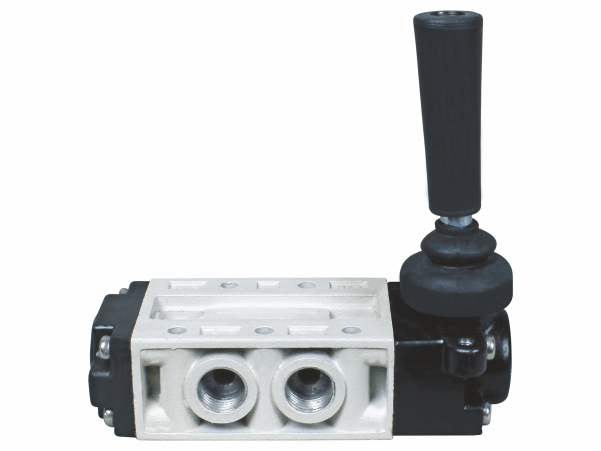

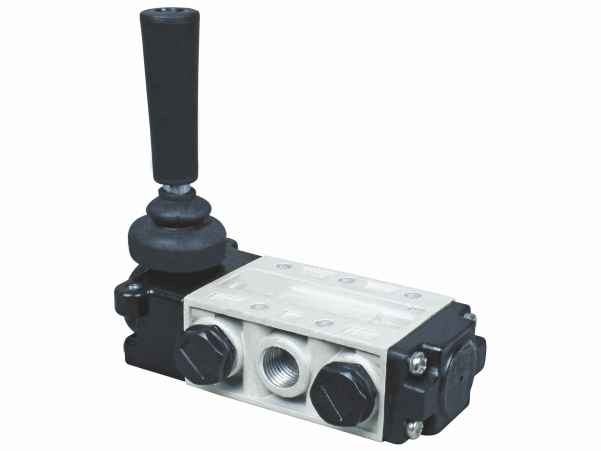

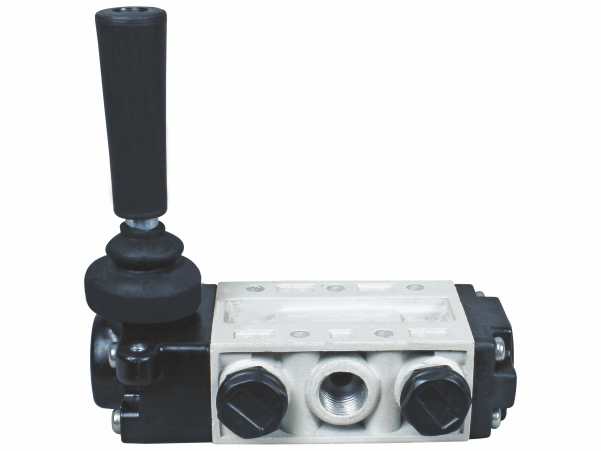

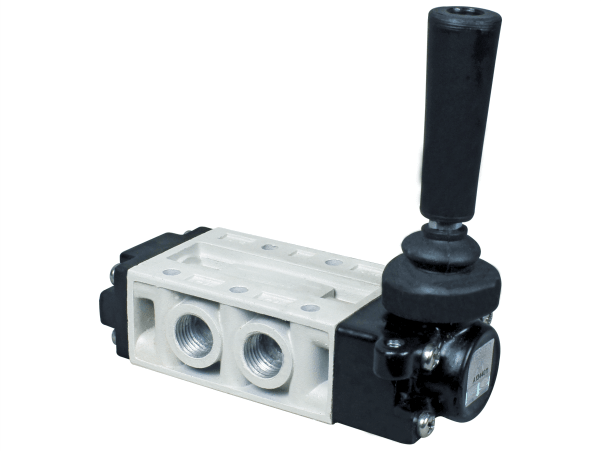

You may attain exact control with the 5/2 Way Hand Lever Valve Spring Return, which has a solid spring return mechanism. Since 1992, we have been one of India’s top manufacturers and exporters of 5/2 Way Hand Lever Valve Spring Return, guaranteeing top-notch goods that satisfy global requirements. Perfect for industrial environments where user-friendliness and fast reaction times are essential.
The smooth transitions between the two settings provided by this long-lasting and efficient valve boost system performance. Useful for controlling actuators, cylinders, and other pneumatic devices.
Looking for improved performance? Consider the 5/2 Way Hand Lever Valve Spring Return, and explore our premium model the 5/2 Hand Lever Valve Spring Return/Detent for a versatile upgrade.
- Compact Design
- Aluminum Die Cast Standard Grade with Powder Coating
- Hard Chrome Plated spool for rust free smooth and long life cycle
- Superior High Grade Seals
- Panel Mounting Available
| Technical Specifications |
| Product Name | 5/2 Way Hand Lever Valve Spring Return |
| Model | SIKOHL-5-SR |
| Size | 1/4″ |
| Design | Spool type, |
| Pressure | Upto 1 to 10 Kg/cm² |
| Temperature | 80 °C |
| Leakage | Bubble Tight |
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) | 0.3 |
