Product Details
| Model | HLPT |
|---|---|
| Size | 1/2", 3/4", 1" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 0.5 to 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

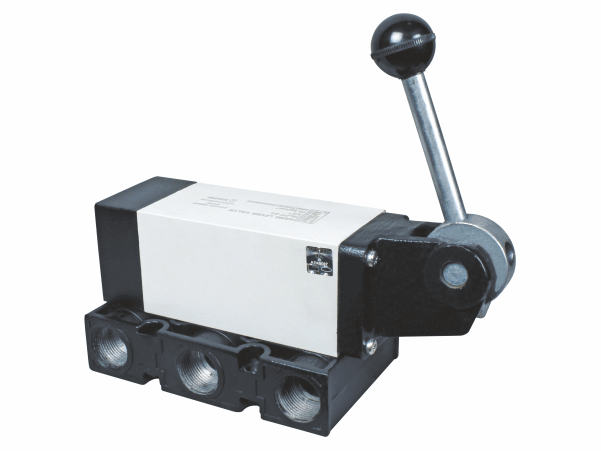

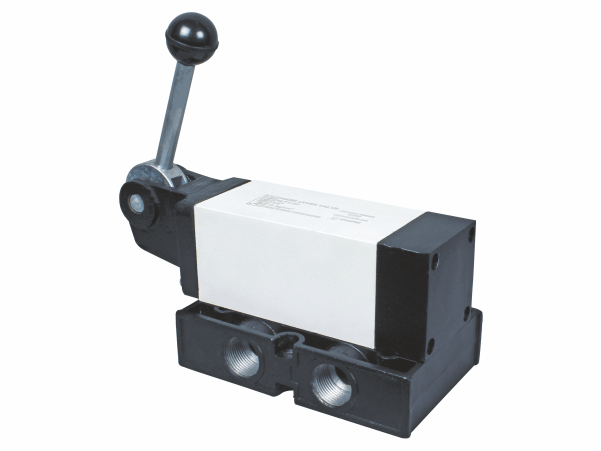

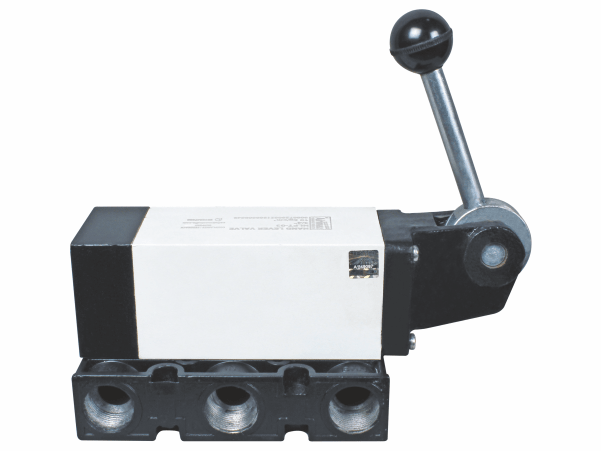

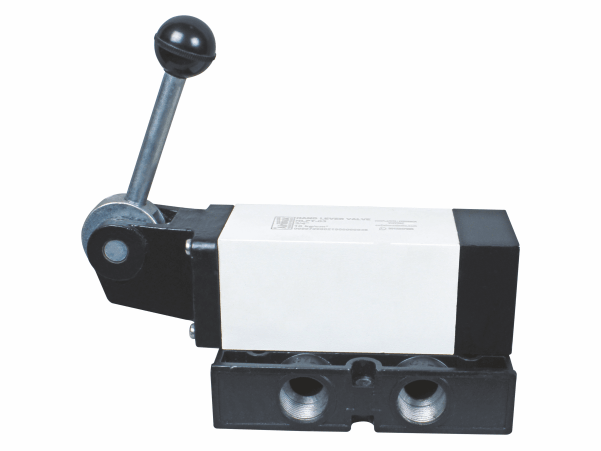

5/2 Way Poppet Type Hand Lever Valve
As a leading manufacturer and supplier of Poppet Solenoid Valves in India since 1992, we offer high-quality 5/2 Way Poppet Type Hand Lever Valves. Established in 1992, our company has consistently been at the forefront of manufacturing and exporting 5/2 Way Poppet Type Hand Lever Valves from Ahmedabad, India, earning us the reputation as leaders in the field. Each valve is completely tested before delivery to ensure reliability.
Made from aluminium press die-cast with nitrile seals, these valves operate with compressed air and have a temperature range of 80°C. With a pressure range of 0.5 to 10 Kg/cm², they are suitable for various pneumatic applications.
This integrates the history and reputation of the company seamlessly into the description. Let me know if you’d like any adjustments!
Take your workflow to the next level by adding our medium range product RM Series 5/2 Way Hand Lever Valve Spring Return / Detent alongside these essential tools for optimal performance.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications | |||||||||||
| Product Name | 5/2 Way Poppet Type Hand Lever Valve | ||||||||||
| Model | HLPT – 02 | HLPT – 03 | HLPT – 04 | ||||||||
| Size | 1/2″ | 3/4″ | 1″ | ||||||||
| Orifice | 12 | 19 | 25 | ||||||||
| Design | Poppet type | ||||||||||
| Pressure | 0.5 to 10 Kg/cm² | ||||||||||
| Temperature | 80 °C | ||||||||||
| Leakage | Bubble Tight | ||||||||||
| Duty Cycle | Continuous Rated | ||||||||||
| Media | Compressed Air ( Filtered & Lubricated ) | ||||||||||
| Flow (NLPM) at 5 BAR | 3600 | 8000 | 11300 | ||||||||
| Weight (Kg) | 2.98 | 2.9 | 3.2 | ||||||||
