Product Details
| Model | UTI–Sugar–502 |
|---|---|
| Size | 1/4" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 2.5 to 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |
| Coil Volt | 12V, 24V, 48V, 110V, 230V, (AC / DC) |

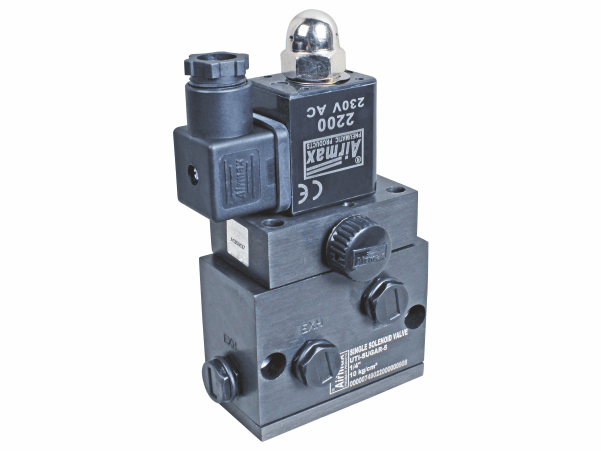

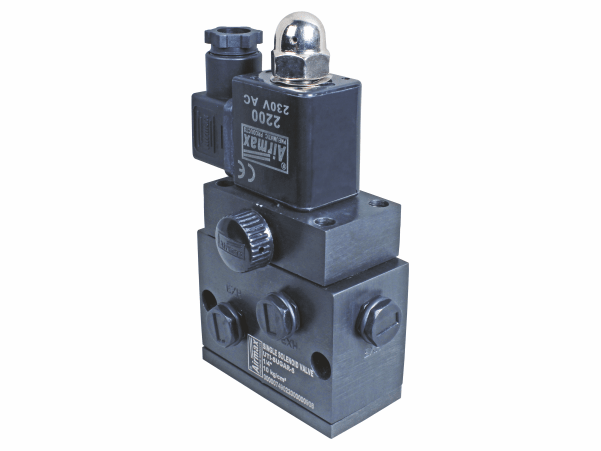

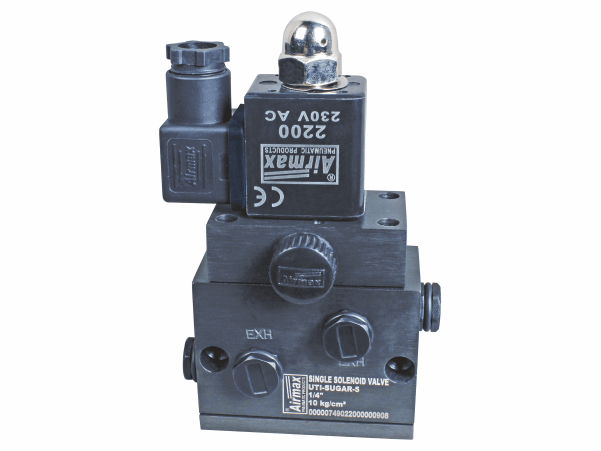

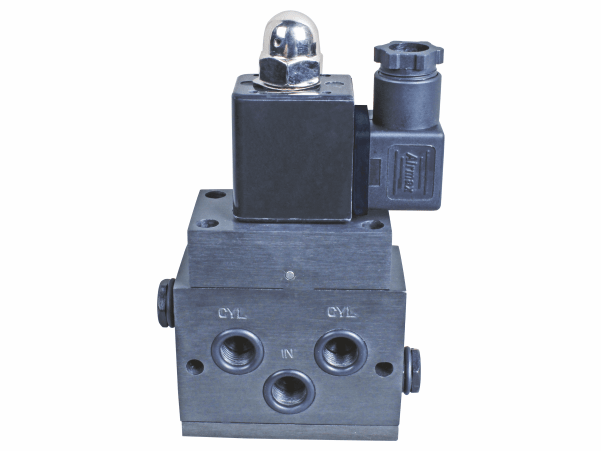

5/2 Way Poppet Type Sugar Solenoid Valve
Our 5/2 Way Poppet Type Sugar Solenoid Valve is a high-quality product manufactured in-house using premium raw materials. Since 1992, we have been a leading manufacturer and exporter of 5/2 Way Poppet Type Sugar Solenoid Valves in Ahmedabad, India. With a robust aluminium press die-cast body and nitrile seals, it ensures bubble-tight leakage protection.
Suitable for compressed air applications, it operates within a temperature range of 80°C and pressure range of 2.5 to 10 Kg/cm².
Achieve a more streamlined and efficient workflow with 3/2 Way Poppet Type Sugar Solenoid Valve and these carefully selected tools.
As a trusted supplier to over 30 countries, we guarantee exceptional performance and reliability. Our solenoid valve is available in various coil voltages, including 12V, 24V, 48V, 110V, and 230V (AC/DC).
- Poppet type Heavy duty Valve
- Suitable for Loading & Unloading Application
- High Flow Volume
- Fast Action
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications | ||||||
| Product Name | 5/2 Way Poppet Type Sugar Solenoid Valve | |||||
| Model | UTI – SUGAR – 502 | |||||
| Size | 1/4″ | |||||
| Design | Poppet type, | |||||
| Pressure | 2.5 to 10 Kg/cm² | |||||
| Temperature | 80 °C | |||||
| Leakage | Bubble Tight | |||||
| Duty Cycle | Continuous Rated | |||||
| Protection | IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard Approved by Central Institute of Mining and Fuel Research (CIMFR)] | |||||
| Connector | DIN 43650 A | |||||
| Response Time | 15 msec ON / 25 msec OFF | |||||
| Coil Voltage | 12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz ( Non Std. Voltage Available On Request ) | |||||
| Media | Compressed Air ( Filtered & Lubricated ) | |||||
| Weight (Kg) | 0.8 | |||||
