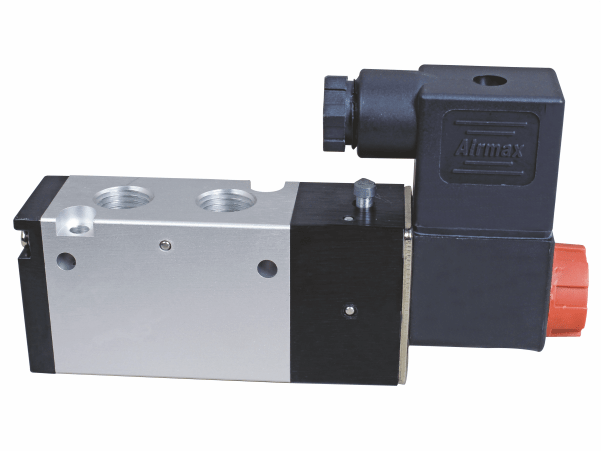

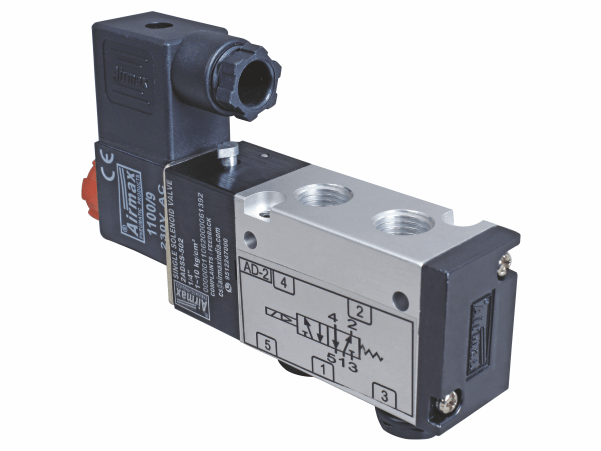

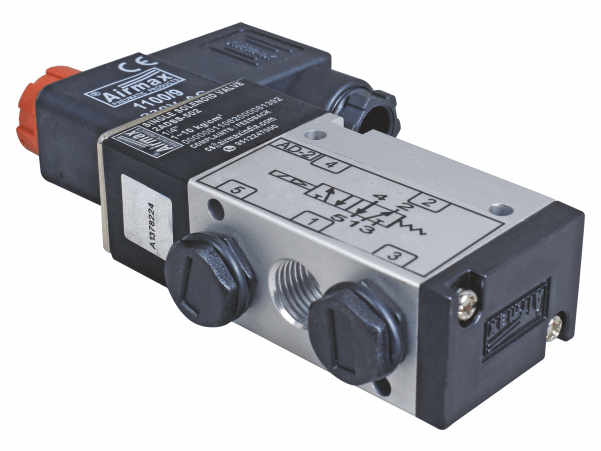

The 5/2 Way Single Solenoid Valve is a directional control valve designed to manage the flow of compressed air in pneumatic systems using an electrical signal. With its compact build, it’s tailored specifically for pneumatic applications, making it a reliable choice in automation setups.
This valve comes in two size options – 1/4″ & 1/2″- and is built to handle pressures ranging from 1 to 10 kg/cm². To suit different electrical setups, it’s available in a range of coil voltages including 12V, 24V, 48V, 110V, and 230V.
The valve offers a fast response time – activating in just 15 milliseconds and deactivating in 25 milliseconds.
If you’re exploring other options, you might also want to check out our 3/2 Way Single Solenoid Valve, ideal for simpler control functions in pneumatic applications.”
- Compact Design with Maximum Flow
- Design Suitable For Gang Manifold upto 12 Valves or Above In Single Manifold
- Push & Rotate Lockable Combined Manual Override Function
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name | 5/2 Way Single Solenoid Valve |
| Model | 2ADSS – 502 | 2ADSS – 504 |
| Size | 1/4″ | 1/2″ |
| Design | Spool type, Internal Pilot Operated (External Pilot On Request) |
| Pressure | 1 to 10 Kg/cm² |
| Temperature | 5 to 55 ˚C |
| Leakage | Bubble Tight |
| Duty Cycle | Continuous Rated |
| Protection | IP 65 Class F |
| Connector | Din 43650 B |
| Response Time | 15 msec ON / 25 msec OFF |
| Coil Voltage | 12V, 24V, 48V, 110V, 230V, (AC/DC) 50/60 Hz ( Non Std. Voltage Available On Request ) |
| Media | Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) | 0.315 | 0.75 |
