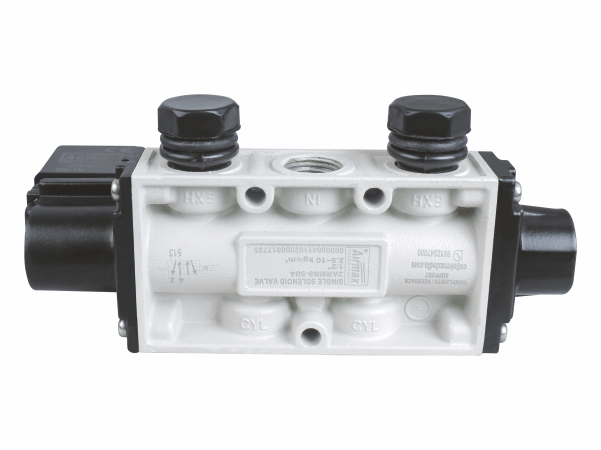

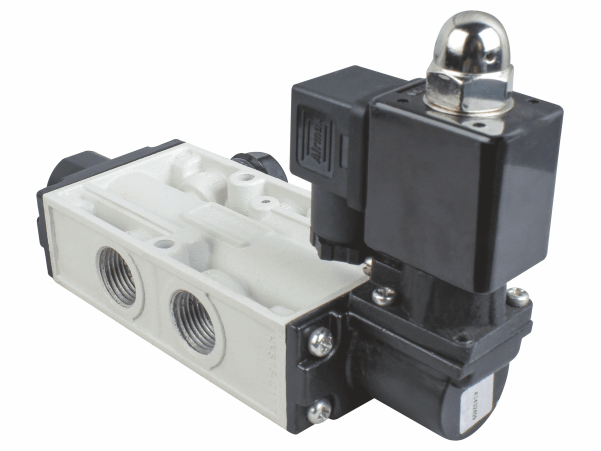

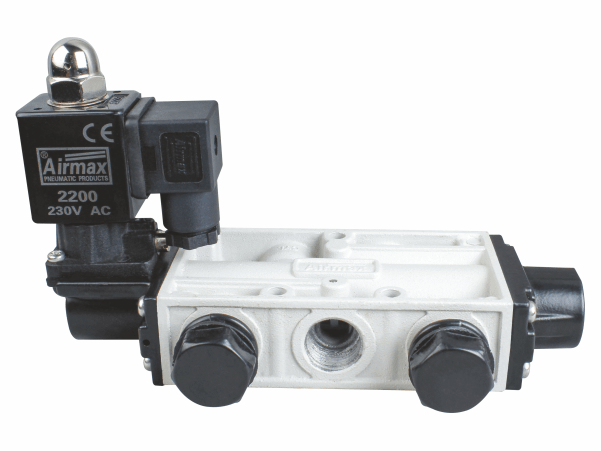

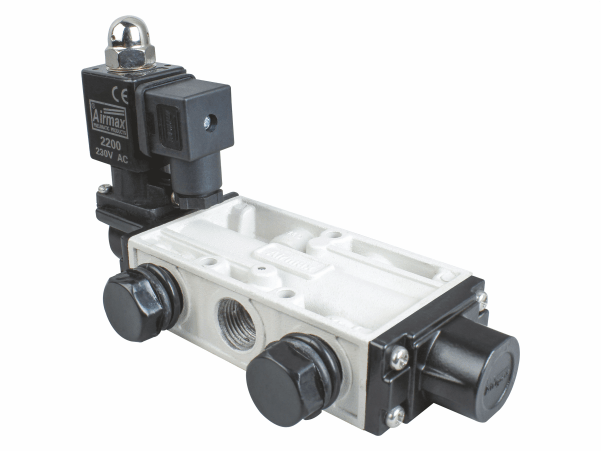

The 5/2 Way Single Solenoid Valve is made of aluminum and has a nitrile seal. It is rated for continuous duty and has a protection rating of IP65. Airmax India manufactures, supplies, and exports these products in India and worldwide. The RM Series is a Low Range Product.
The 3/2 Way Single Solenoid Valve is essential for applications requiring simpler control, making it a good consideration alongside this one.
If your project demands specific operational characteristics, the poppet type 5/2 Way Single Solenoid Valve delivers unique advantages that can complement the functionality of the 5/2 Way valve.
Contact Airmax today to discuss your specific requirements and find the perfect 5-2 way single solenoid valve for your pneumatic system!
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Coil – Continuous duty low power consumption, CIMFR & CE Approved.
- Superior High Grade Seals
- Simple design easy to maintenance
- Manual Operator Push, Rotate & Lockable type.
| Technical Specifications |
| Product Name |
5/2 Way Single Solenoid Valve |
| Model |
2ARMSS – 302 |
2ARMSS – 304 |
| Size |
1/4″ |
1/2″ |
| Orifice |
6.5 |
12.5 |
| Design |
Spool type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure |
2.5 to 10 Kg/cm² |
| Temperature |
80 °C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 [Flameproof / Explosion Proof As Per IS / IEC 60079 – 1 Standard
Approved by Central Institute of Mining and Fuel Research (CIMFR)] |
| Connector |
DIN 43650 A |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR |
1100 |
3000 |
| Weight (Kg) |
0.66 |
1.19 |
