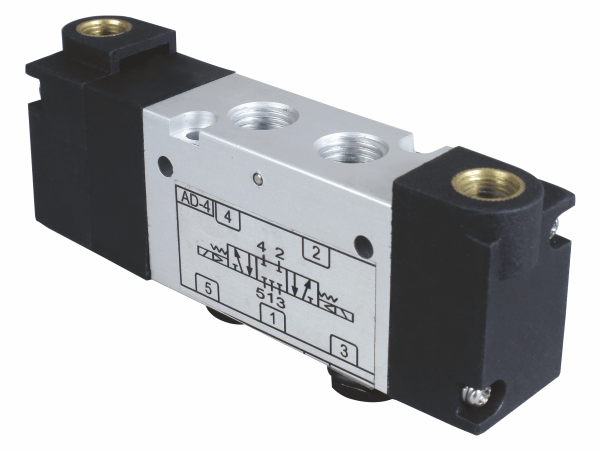

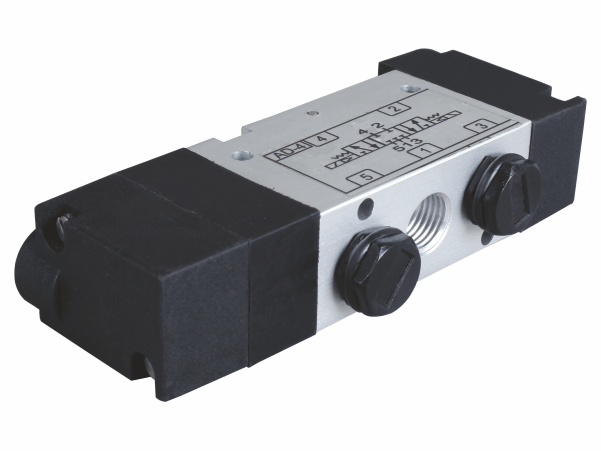

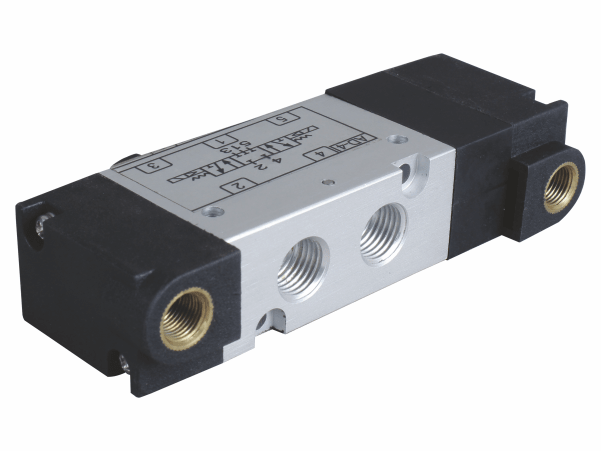

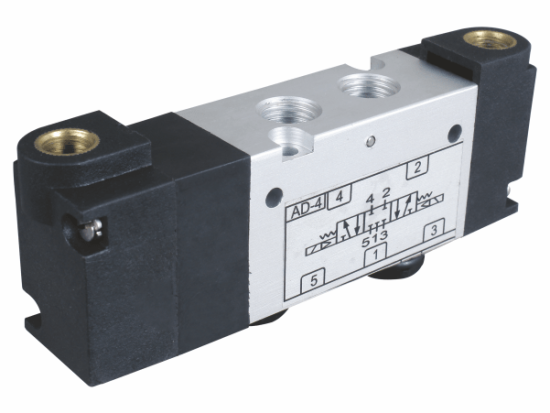

This 5/3 way 3 position double pilot valve is designed to control the flow of compressed air in a pneumatic system. It utilizes a spool type design, featuring a sliding spool to regulate airflow. The valve comes in two sizes: 1/4″ and 1/2″. It can withstand a pressure range of 1 to 10 Kg/cm² and temperatures between 5 to 55 ˚C. Notably, the valve is bubble tight, signifying an exceptionally low leakage rate.
In addition to manufacturing these valves, we at Airmax Pneumatics are proud to supply and export them across India and worldwide. If you’re looking for a step up from our basic model, consider this RM series 5/3 way 3 position double pilot valve medium-range option with added features.
- Compact Design with Maximum Flow
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name | 5/3 Way 3 Position Double Pilot Valve |
| Model | 3ADDP – 502 | 3ADDP – 504 |
| Size | 1/4″ | 1/2″ |
| Design | Spool type |
| Pressure | 1 to 10 Kg/cm² |
| Temperature | 5 to 55 ˚C |
| Leakage | Bubble Tight |
| Media | Compressed Air ( Filtered & Lubricated ) |
| Weight (kg) | 0.2 | 0.625 |
