5/3 Way Hand Lever Valve Detent

Airmax pneumatic is the best Supplier of 5/3 Way Hand Lever Valve Detent Manufacturer in india

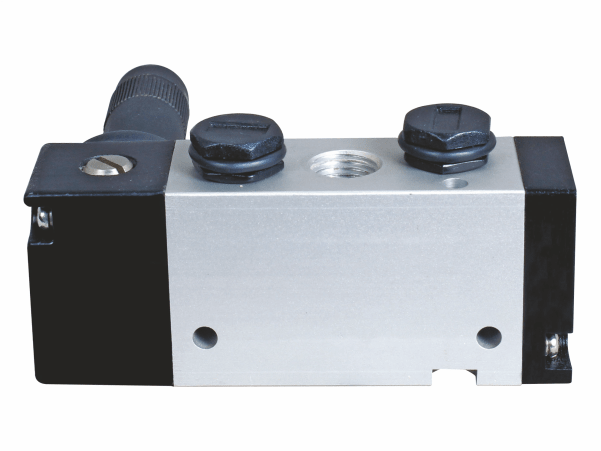

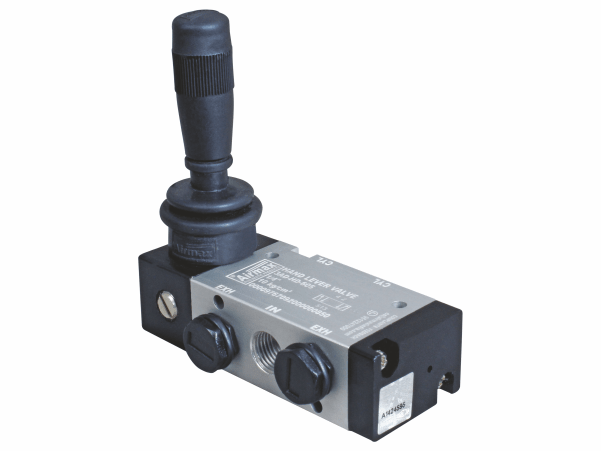

Airmax pneumatic is the best Supplier of 5/3 Way Hand Lever Valve Detent Manufacturer in india Detailed View of 5/3 Way Hand Lever Valve Detent on clean background by Airmax India Magnified View of AD-20 series 5/3 Way Hand Lever Valve Detent on white background by Airmax India

Product Details

Model3AD-HD-607 | 3AD-HD-605
Size1/2” & 1/4"
BodyAluminium Anodized
Valve TypePAN | PHN | PRN
SealsNitrile
Pressure10 Kg/Cm²
Temperature5 to 55°C
LeakageBubble Tight
MediaCompressed Air (Filtered & Lubricated)
Inquiry
Technical Specifications
Product Name5/3 Way Hand Lever Valve Detent
Model3AD-HD-6053AD-HD-607
Size1/4″1/2″
TypeDetentDetent
DesignSpool type
Pressure10 Kg/cm²
Temperature5 to 55 ˚C
Flow rate in SCFM Lts. / Min @6 KG42123
Recommended Oil For LubricationISO VG32
LeakageBubble Tight
MediaCompressed Air ( Filtered & Lubricated )
Weight0.280.8
