Product Details
| Model | ADB |
|---|---|
| Size | 3/8" & 1/2" |
| Body | Aluminium Press. Die Cast |
| Pressure | 0 to 16 kg/cm² |
| Temperature | 85°C |
| Media | Moisture From Compressed Air |

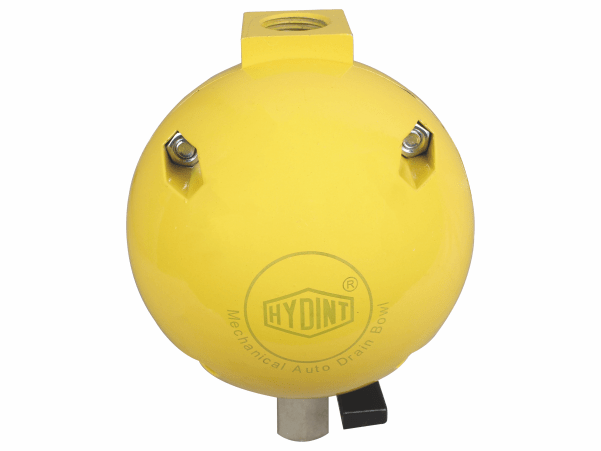

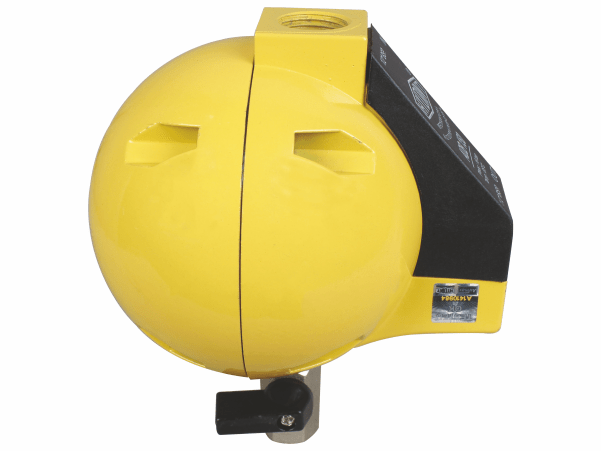

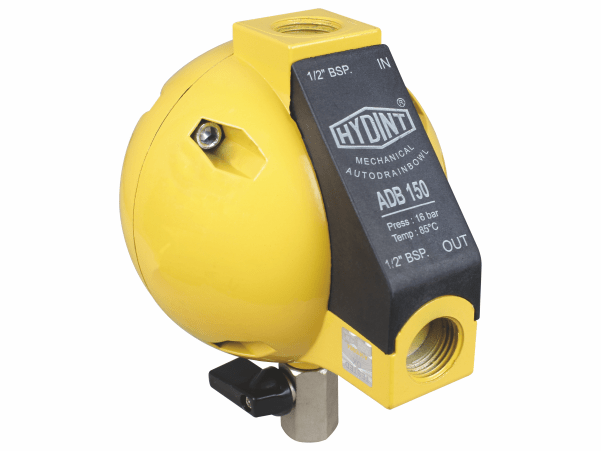

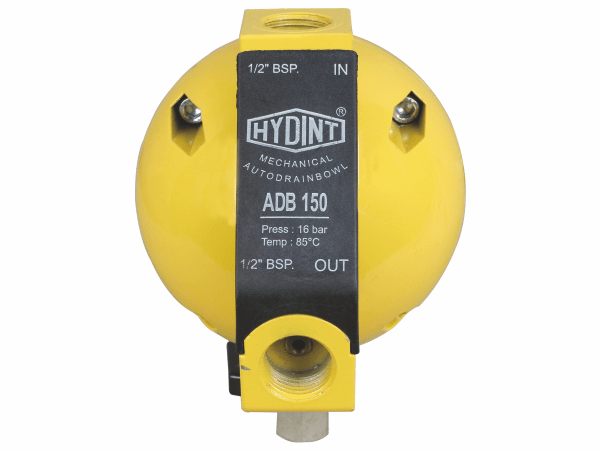

Auto Drain Valve
We are a manufacturer and supplier of Auto Drain Valve in India, crafted for smooth and automatic moisture removal from air compressors. Available in 3/8″ and 1/2″ sizes, it features a durable aluminum pressure die-cast body and a manual ball valve drain.
With a working pressure range of 0 to 16 kg/cm², this mechanically operated valve ensures zero air loss while keeping things running dry and clean. Smart choice, fair price – built for pharma, food, textile, and chemical industries.
Built to support consistent drainage and reduce manual intervention; for smart scheduling and improved control, explore our Electric Preset Auto Drain Valve.
- Mechanically operated bowl for automatic drainage of moisture collected from air compressor
- Very moderate rates
- Reducing operating costs
- Light Weight Aluminum Die Cast Body
- It works with zero air loss
| Technical Specifications | ||||||
| Product Name | Auto Drain Valve | |||||
| Model | ADB – 150 – 10 | ADB – 150 – 15 | ||||
| Size | 3/8″ | 1/2″ | ||||
| Working Pressure | 0 – 16 Kg/cm² | |||||
| Temperature | 85 °C | |||||
| Maintenance | No maintenance required | |||||
| Media | Moisture from Compressed Air | |||||
| Installation Preferred | Below Moisture Separator / Air Receiver Tank Air Compressor / Air Dryer | |||||
| Moisture Drainage | Mechanically operated Automatic Drainage | |||||
| Mounting | Vertically (as saw in picture) | |||||
