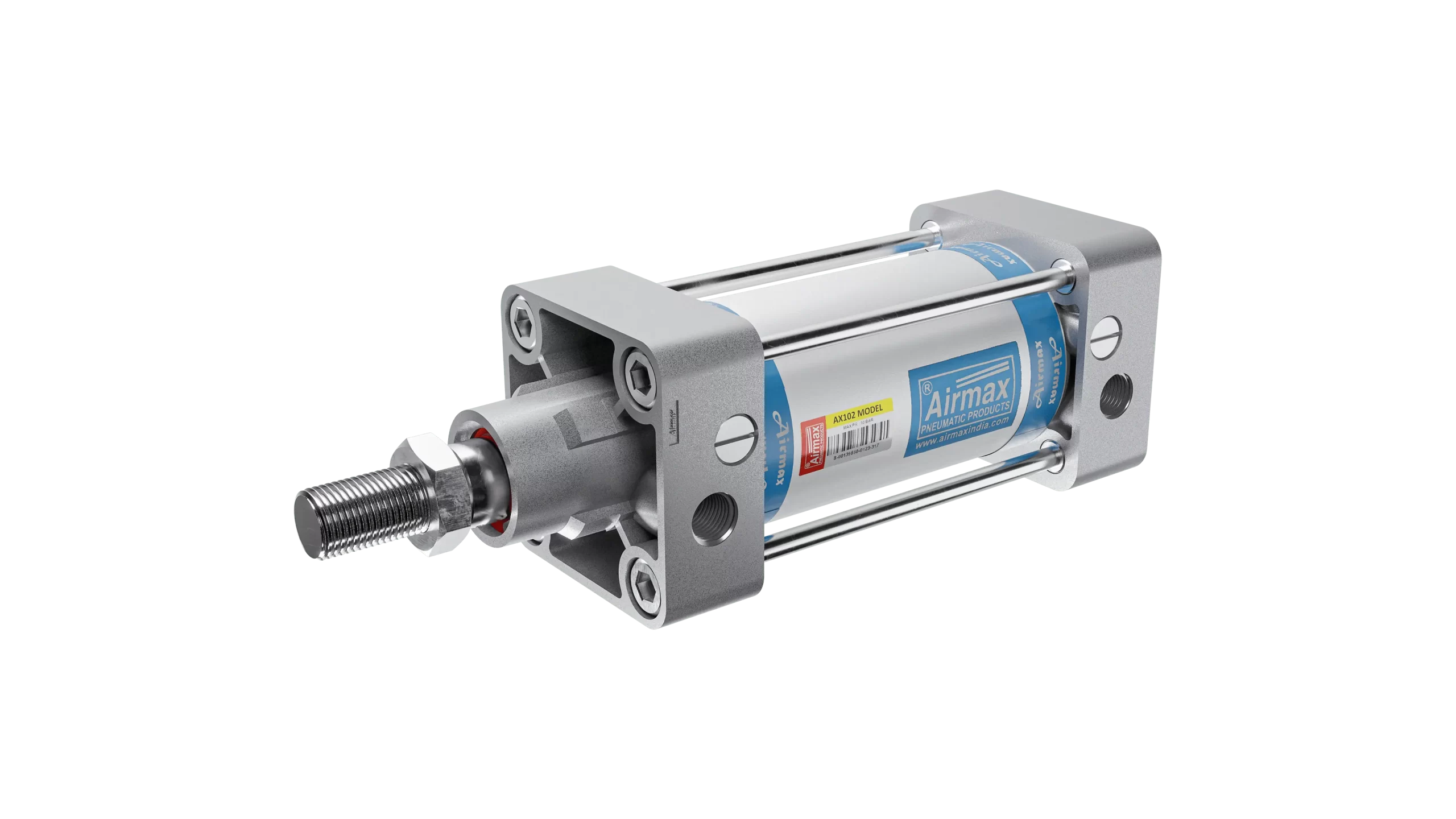

Airmax Make “AX102” – Model Air Cylinder as per ISO 6413 & CETOP RP43P Standard.
Airmax Pneumatics presents the Round Body Pneumatic Air Cylinder, designed for precision and durability. With a stroke range from 25mm to 1000mm (extendable up to 2000mm) and high-quality seals like Buna-N, Viton, P.U., and Hi-Nitrile, this cylinder ensures reliable performance.
Available in Female Clevis, Wall Bracket, and Eye Rod Mounting, it’s ideal for automotive, pharmaceutical, food processing, textile, and packaging industries.
As a leading manufacturer and supplier of round body pneumatic cylinders in India, we guarantee top-tier engineering for your industrial needs. Contact us today to upgrade your pneumatic systems!
Choose the FMK Model K-05 Series for precise control – offers precise control and durability for demanding pneumatic applications.
- Adjustable cushioning at both ends
- Wide varieties of mounting
- Low Friction
- Long Life
| Technical Specifications |
| Product Name | Round Body Pneumatic Air Cylinder (AX102 Model) |
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | – | – | – |
| Stroke | Standerd in Multiplication of 25 mm |
| Cushion | Available at both ends |
| Barrel | Aluminum, Hard Anodized |
| Piston Rod Dia | 12 | 16 | 20 | 20 | 25 | 25 | 32 | – | – | – |
| End Cover | Aluminum, Pressure Die Cast |
| Sales | Polyurethene, Nitrile
(Viston seal available on request for high temperature) |
| Surface Treatment | Auto Finish Enameling end cover & cylinder barrel |

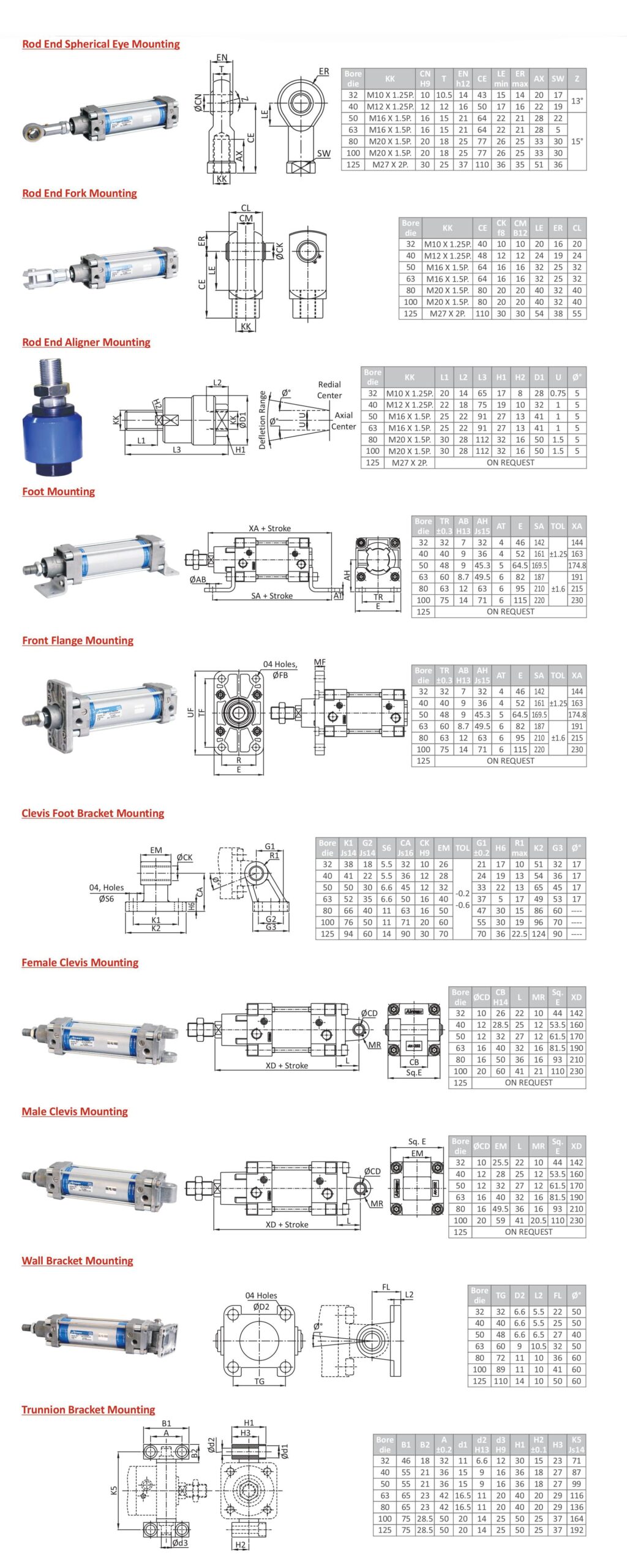

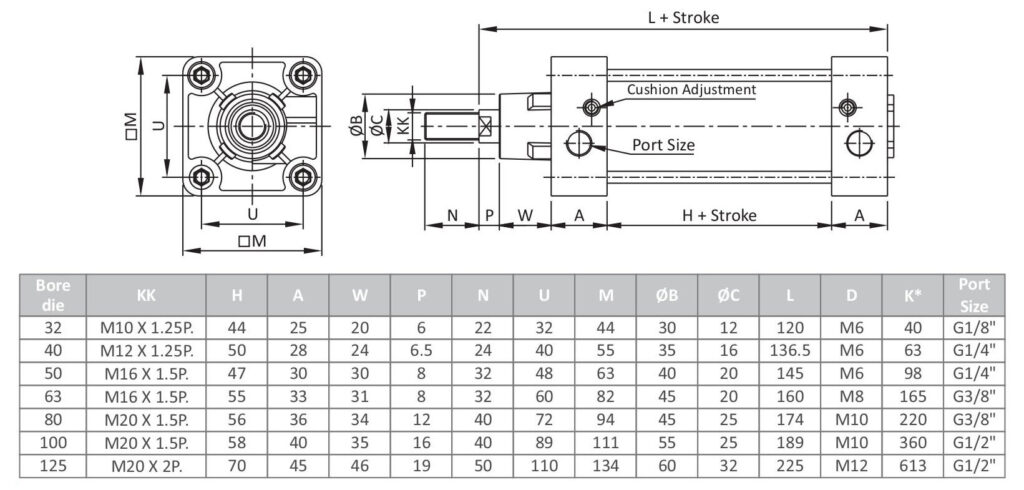

| Mounting | Std. Mounting Available (For More Detailes See Dimension) |
