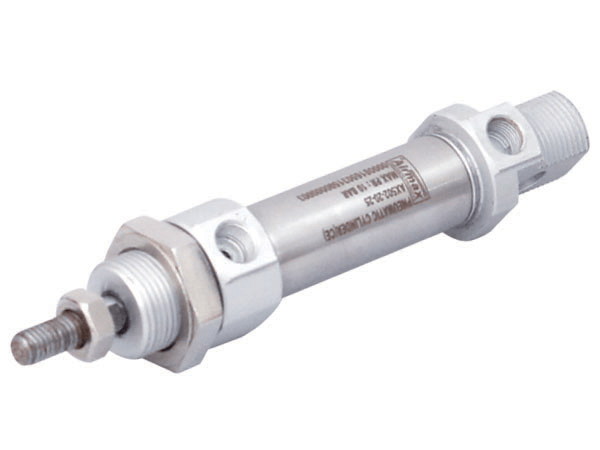

AX502 Model

[magiczoom id=”151″]

Product Details

Bore (mm) 16 l 20 l 25
Piston Rod 06 l 08 l 10
Stroke 25mm to 500 mm
Valve Type Double Acting
Pressure 0.5 to 9 kg
Temperature -10°C to 70°C
Mounting

Clevis Foot Mounting, Eye Rod Mounting, Fork Mounting, Foot Mounting, Front & Rear Flange

Oper. Speed 50 ~ 500 (mm/sec)
Port Size M5, 1/8"
Media Compressed Air
