Product Details
| Model | DTH - 895 |
|---|---|
| Size | 1/2" (F) (BSP) |
| Body | IC SS |
| Critical Ambient Temperature | 20°C & 85°C |
| Humidity Condition | Less than 85% |
| Off Time | 1 Sec to 99h 59 min 59 Sec |
| On Time | 1 Sec to 99h 59 min 59 Sec |

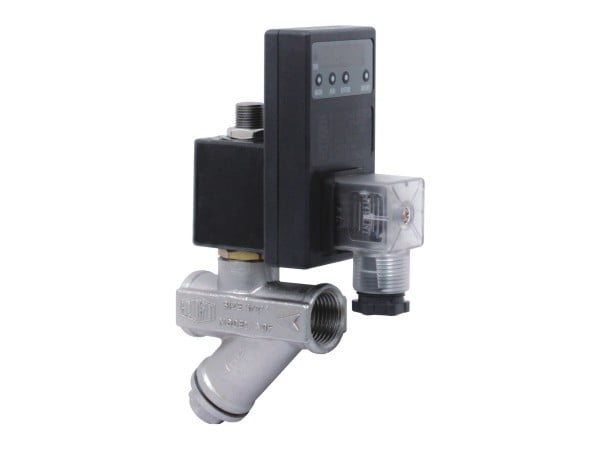

Digital Electrical Auto Drain Valve
Looking for smart, hands-free drainage? Our Digital Electrical Auto Drain Valve gets the job done with accuracy. Built with a 1/2″ BSP (F) connection and sturdy IC SS body, it works smoothly in environments ranging from 20°C to 85°C, under 85% humidity. The digital timer gives you full control – adjust both on-time and off-time from 1 second to almost 100 hours. A practical choice for pharma, textile, and food industries where moisture control can’t be left to chance.
Ideal for automated drainage with digital convenience – support your setup with a Spare Electrical Timer With Coil to handle future part replacements with ease.
- Timer based electrically operated valve to drain moisture automatically from Air Compressor / Air Receiver Tank
- Very moderate rates
- Reducing operating costs
| Technical Specifications | ||||||
| Product Name | Digital Electrical Auto Drain Valve | |||||
| Model | DTL – 895 & DTH – 895 | |||||
| Size | 1/2″ Female Thread ( BSP ) | |||||
| Efficiency | 99.99% | |||||
| Working Pressure | 10 Kg/cm² / 21 Kg/cm² / 60 Kg/cm² | |||||
| Coil Voltage DTL Model | 12, 24 & 36V AC / DC Low Voltage | |||||
| Coil Voltage DTL Model | 48, 110, & 230V AC / DC High Voltage | |||||
| Critical Ambient Temperature | 20 °C & 85 °C | |||||
| Humidity Condition | Less than 85% | |||||
| Mounting | Indore only, Spare Weather Proof Box with LED indicator available for outdoor mounting | |||||
| Manual Override | Reset | |||||
| Off Time | 1 second to 99 hours, 59 minute, 59 second ( Adjustable ) | |||||
| On Time | 1 second to 10 minute ( Adjustable ) | |||||
| Maintenance | Stainer to clean on clogging | |||||
| Spare Coil / Timer | Available | |||||
| Timer | Digital ( Adjustable ) | |||||
