Product Details
| Model | JHFRCLM |
|---|---|
| Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Body | Aluminium Pressure Die Cast |
| Seals | NBR |
| Pressure | 10 Kg/cm² |
| Temperature | 50˚C |
| Media | Compressed Air |

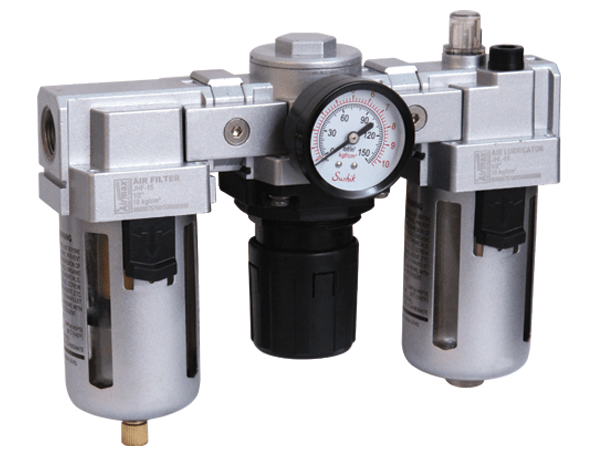

F + R + L Sets 3pc With Pressure Gauge
The F + R + L Sets 3pc with Pressure Gauge (Model: JHFRCLM) are designed to provide optimal air filtration, control, and lubrication in pneumatic systems. These high-quality sets, available in 1/4″, 3/8″, 1/2″, 3/4″, and 1″, assure smooth operations and increase the life of your equipment.
These sets are made in-house with high-quality raw materials and include a precise pressure gauge for convenient monitoring. Compatible with ISO VG32 oil for improved lubrication performance, making them a dependable solution for your industrial applications.
For those seeking a simpler solution, the FR + L Sets 2pc With Pressure Gauge offers dependable performance at best price.
- Safety steel bowl guard – Push in turn type
- Modular Mounting Type
- Sinter Bronze Filter Element
- Suitable for Panel and Modular Mounting Type
- Fine Adjustment of Lubrication
- Lubrication Proportional to Flow
- Type of Oil to be used ISO VG32.
| Technical Specifications | |||||||||||
| Product Name | F + R + L Sets 3pc With Pressure Gauge | ||||||||||
| Model | JHFRLM-13 | JHFRLM-14A | JHFRLM-14B | JHFRLM-15 | JHFRLM-17A | JHFRLM-17B | |||||
| Size | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | |||||
| Opr. Pressure | 10 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Seals | NBR | ||||||||||
| Media | Compressed Air | ||||||||||
| Weight (Approx.) | 0.74 | 1.18 | 1.18 | 2.14 | 3.82 | 3.82 | |||||
