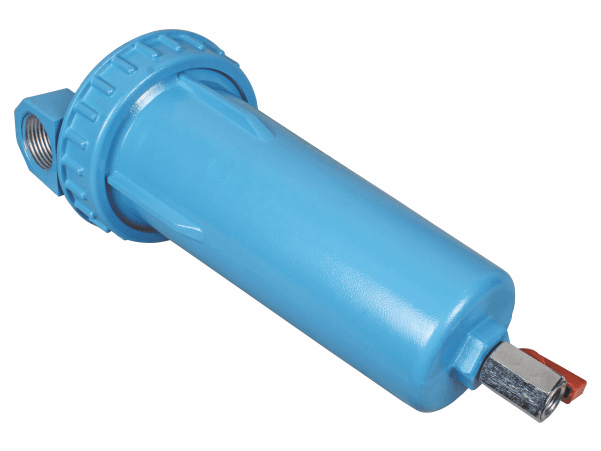

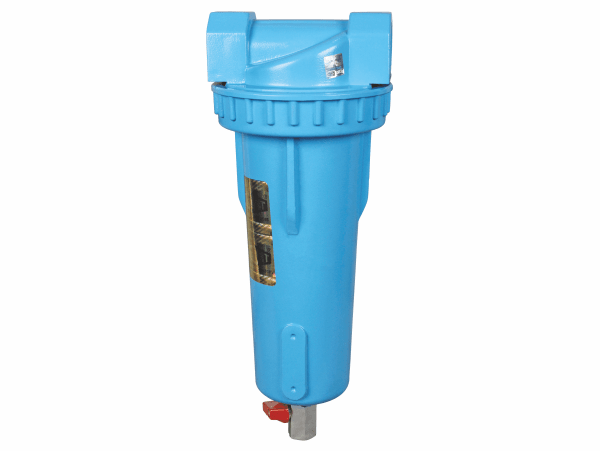

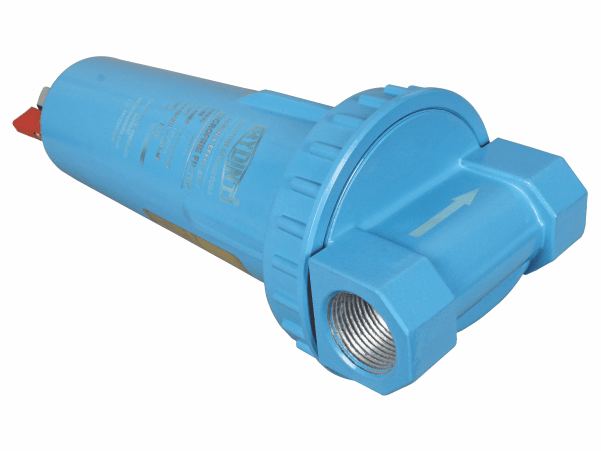

The Microfine Filter is designed to ensure ultra-clean air in critical applications. Available in sizes from 1/4″ to 2.1/2″ Female Screwed (BSP) and 3″ to 10″ Flanged (as per “D” Table & “F” Table flange thickness), it features a durable body made of aluminum pressure die-cast and steel fabricated materials. The bowl is offered in aluminum or C.S. powder coated variants for added strength. With a working pressure of up to 10Kg/cm² and temperature resistance up to 60°C, this filter includes a manual valve for drainage.
We are a manufacturer and supplier of Microfine Filter in India. Installation is preferred after the moisture separator and pre-filter, with at least 6 meters distance from the compressor or tank.
Delivers high-efficiency filtration at the final stage of air purification – maximize performance by pairing it with a Pre Filter to trap larger contaminants beforehand.
- Chrome processed and epoxy powder coated from inside and outside for durability and corrosion resistance
- Ideal for critical applications and expensive Equipment / Instrument / Tools
- To be used for final purification after moisture and dust separation from the compressed air
- Removes compressor lubricant (mineral or system), acidic condensates, oil and hydrocarbon vapors with less pressure drop
- 0.01 micron replaceable filter element
- Peace of mind after Installation
- Complete, Purified, Quality Filtered air to use
- Very moderate rates
- Easy replaceable of filter element
- Reduces operating costs
- Piston type seal keeps unfiltered air from by-passing the filter element
| Technical Specifications |
| Product Name |
Microfine Filter |
| Model |
HPF5 |
| Size |
1/4″ to 2.1/2″ Female Screwed (BSP)
3″ to 10″ Flanged ( Dimension as per “D” Table &
Flange Thickness as per “F” Table. |
| Flow rate of SCFM |
21 to 12715 |
| Filter Element |
Synthetic Fiber & Polyurethane Foam |
| Filter Element Life |
Maximum 1 Year / depending on the usage ( Replaceable ) |
| Efficiency |
0.01 ppm w/w maximum remaining oil content |
| Pressure |
0 to 10 Kg/cm² |
| Temperature |
Upto 60 °C |
| Maintenance |
Replace spare filter element on clogging and pressure drop
Spare filter element available |
| Spares |
Compressed Air |
| Installation Preferred |
At the end in each Equipments / Instrument / Tools after
Moisture Separator and Pre – Filter |
Minimum Distance
Required |
6 mtrs after Air Compressor / Air Receiver Tank |
| Drainage Provision |
Manual Valve |
