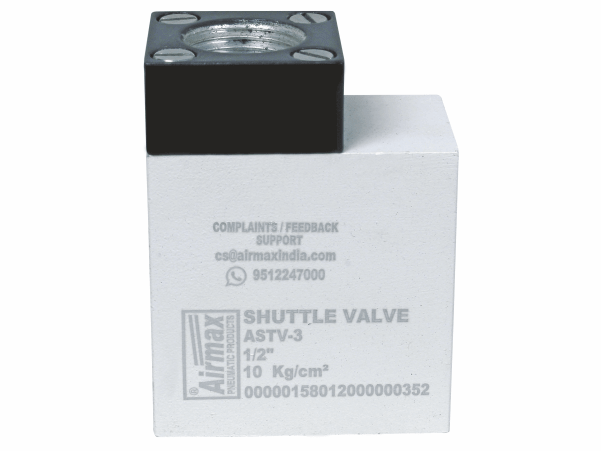

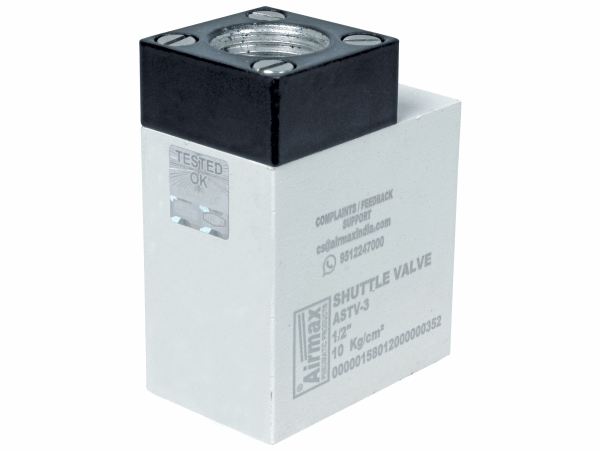

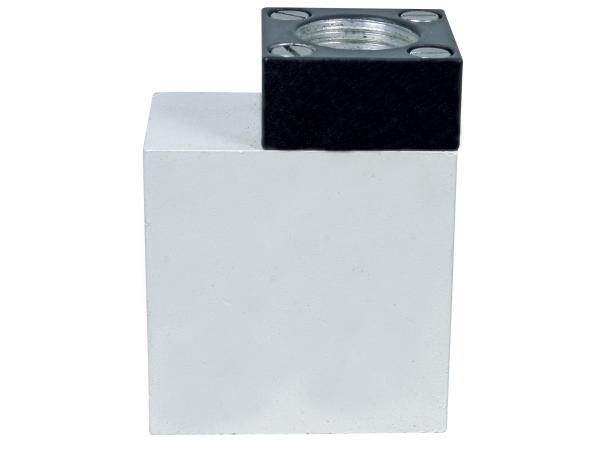

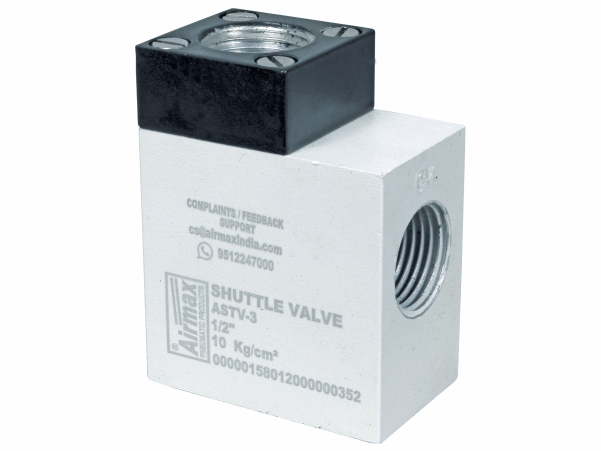

Shuttle Valve

Name: Airmax pneumatics ltd
Address: HYDINT HOUSE, B/h. Cozy Hotel, Narol Road, Ahmedabad, Gujarat, 382405, IN
Telephone: +91 7567860865
Price range: $$

Airmax is a trusted shuttle valve manufacturer in Gujarat.

Product Details

Model	ASTV
Size	1/4", 1/2"
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	10 Kg/Cm²
Temperature	80°C
Leakage	Bubble Tight
Media	Compressed Air

Download Inquiry

Shuttle valve is a type of valve which allows fluids to flow through it from one of two inlets sources.

Technical Specifications
Product Name	Flow Control Valve
Model	ASTV – 1	ASTV – 4
Size	1/4″	1/2″
Orifice	6.5	12.5
Design	Piston / Poppet Type
Pressure	Upto 10 Kg/cm²
Temperature	80 °C
Leakage	Bubble Tight
Media	Compressed Air ( Filtered & Lubricated )
Flow (NLPM) at 5 BAR (In to Cyl)	1100	2500
Weight (Kg)	0.11	0.22
