Product Details
| Model | SIKOPP-5 |
|---|---|
| Size | 1/4" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

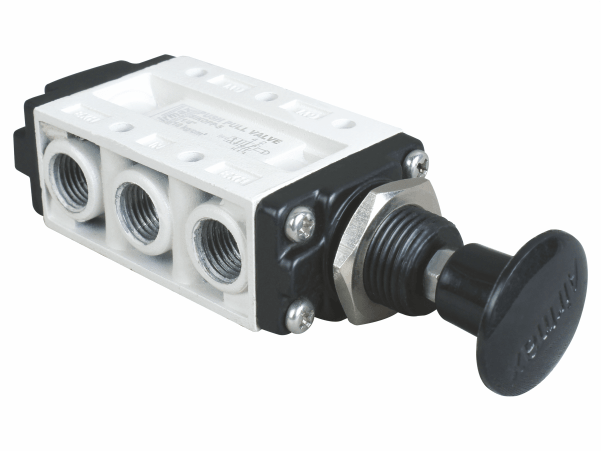

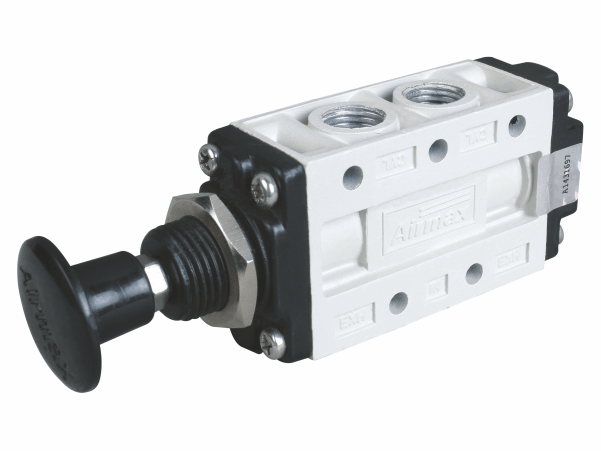

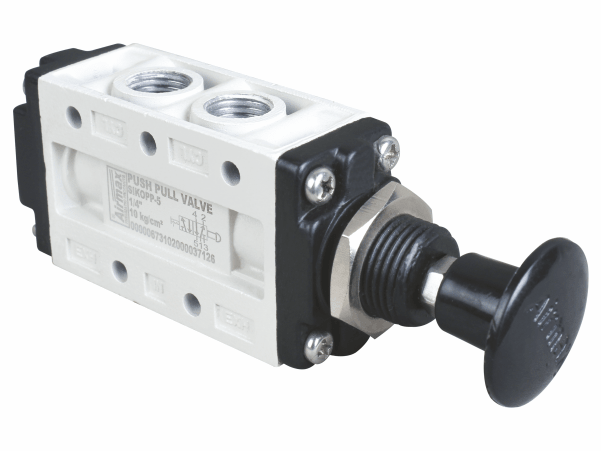

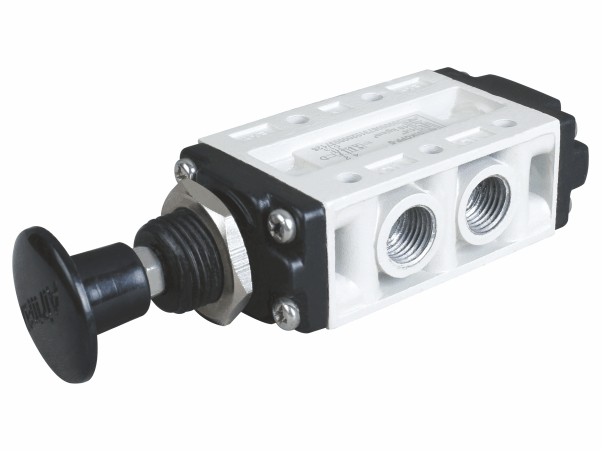

5/2 Way Push Pull Valve Spring Return & Detent
Strengthen your pneumatic systems with Airmax Pneumatic’s Siko Series 5/2 Way Push Pull Valve Spring Return & Detent! For over three decades since 1992, we have been leading manufacturers and exporters of 5/2 Way Push Pull Valve Spring Return & Detent in Ahmedabad, India.
This valve is made of solid aluminum press die cast and has anodized seals for superior durability and corrosion resistance. Its bubble-tight sealing is optimal for filtered and lubricated compressed air, assuring optimal efficiency and performance in your operations.
The spring return mechanism offers an accurate automatic reset to a safe position, and the detent function gives positive positioning feedback, improving operating safety and control. This valve is ideal for a wide range of industrial applications, including automation and robotics, and it will help you boost both efficiency and dependability.
The 5/2 Way Push Pull Valve Spring Return & Detent is ideal for simple operations, while the AD – 20 series 5/2 way push pull valve excels in automation systems requiring more control.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications | |||||||
| Product Name | 5/2 Way Push Pull Valve Spring Return & Detent | ||||||
| Model | SIKOPP-5 | ||||||
| Size | 1/4″ | ||||||
| Design | Spool type, | ||||||
| Pressure | Upto 10 Kg/cm² | ||||||
| Temperature | 80 °C | ||||||
| Leakage | Bubble Tight | ||||||
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) | ||||||
| Weight (Kg) | 0.2 | ||||||
