Product Details
| Model | SIKOHL-5-DT |
|---|---|
| Size | 1/4" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 1 to 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

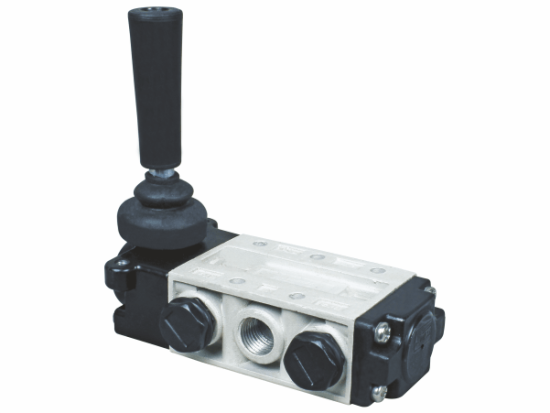

5/3 Way Hand Lever Valve Detent
With its durable detent mechanism, the SIKO Series 5/3 Way Hand Lever Valve offers outstanding control. We have been a leading manufacturer and exporter of 5/3 Way Hand Lever Valve Detent in India since 1992, and this valve exemplifies our commitment to quality and innovation. It is perfect for pneumatic control systems since it is made for precision operation and enables smooth changeover between several locations.
It is designed to easily handle heavy-duty tasks while providing more stability and longevity. It offers seamless, effective performance for even the most demanding settings and is appropriate for a variety of industrial applications.
The 5/3 Way Hand Lever Valve Detent provides reliable switching, and the medium range product 5/3 Way Hand Lever Valve Detent offers additional flexibility for demanding applications.
- Compact Design
- Aluminum Die Cast Standard Grade with Powder Coating
- Hard Chrome Plated spool for rust free smooth and long life cycle
- Superior High Grade Seals
- Panel Mounting Available
| Technical Specifications | |||||||||||
| Product Name | 5/3 Way Hand Lever Valve Detent | ||||||||||
| Model | SIKOHL-5-DT | ||||||||||
| Size | 1/4″ | ||||||||||
| Design | Spool type, | ||||||||||
| Pressure | Upto 1 to 10 Kg/cm² | ||||||||||
| Temperature | 80 °C | ||||||||||
| Leakage | Bubble Tight | ||||||||||
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) | ||||||||||
| Weight (Kg) | 0.3 | ||||||||||
