Product Details
| Model | AFR-S |
|---|---|
| Size | 1/4" to 1" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Bowl | P.C. Bowl / Metal Bowl |
| Element | 25 Micron |
| Pressure | Up to 10 Kg/cm² |
| Temperature | Up to 50˚C |
| Media | Compressed Air |

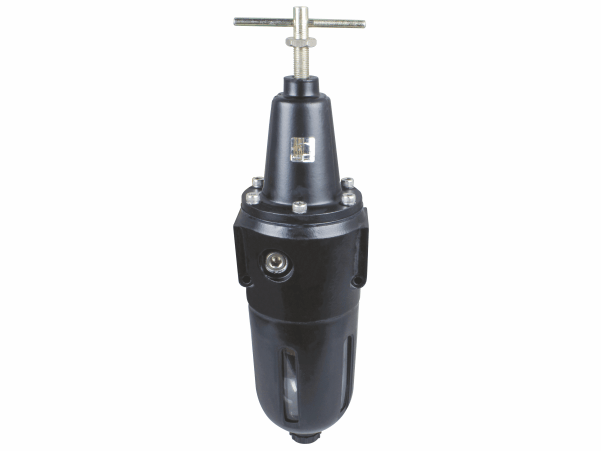

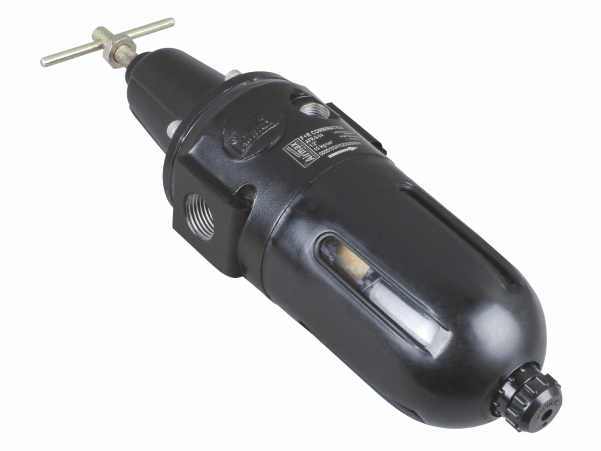

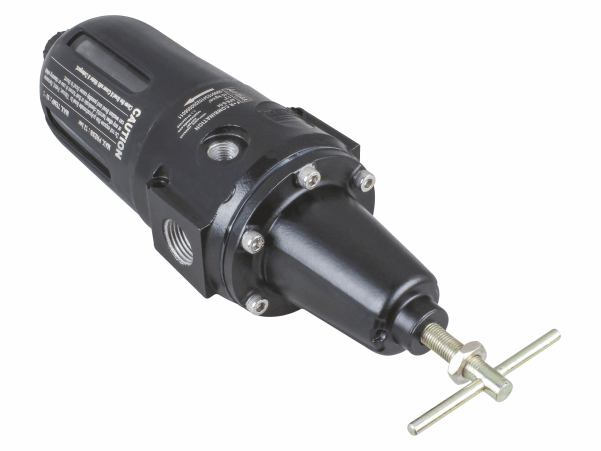

Air Combination
The Air Combination of our Standard Series is designed for high-flow performance and long-term durability, making it ideal for demanding pneumatic systems. Available in sizes ranging from 1/4″ to 2″, it provides versatility by allowing you to choose between a plastic bowl and a metal bowl, and it works flawlessly with ISO VG32 oil.
This small unit is made for large-scale manufacturing plants and industries that require heavy-duty pneumatic equipment, such as steel, cement, pharmaceuticals, and chemicals. As a leading manufacturer and provider of air combination in India, we guarantee excellence in every aspect.
If you’re satisfied with Standard Series Air Combination, consider the FO Series Air Combination for a more comprehensive air preparation system.
- Compact with High Flow Design
- Aluminum Die Cast Standard Grade with Powder Coating.
- Mounting Available
- Heavy Duty & Durable Design
- Comfortable to all industrial use.
| Technical Specifications | |||||||||||
| Product Name | Air Combination | ||||||||||
| Model | AFR-S-02 | AFR-S-05 | AFR-S-04 | AFR-S-06 | |||||||
| Size | 1/4″ | 1/2″ | 3/4″ | 1″ | |||||||
| Opr. Pressure | Upto 10 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Seals | NBR | ||||||||||
| Adjusting Setting | Turn “T” Type key clock wise to increase pressure | ||||||||||
| Flow SCFM at 5 Bar | 60 | 80 | 125 | 140 | |||||||
| Media | Compressed Air | ||||||||||
