Product Details
| Model | AL-S |
|---|---|
| Size | 1/4" to 2" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Bowl | P.C. Bowl / Metal Bowl |
| Pressure | Up to 10 Kg/cm² |
| Temperature | Up to 50˚C |
| Media | Compressed Air |

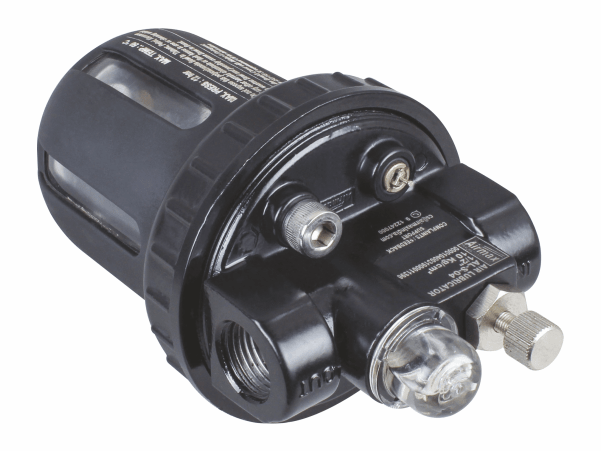

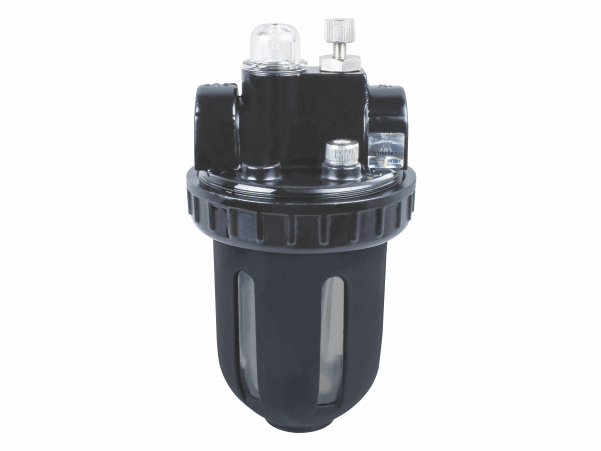

Air Lubricator
Our Standard Series Air Lubricator, as a leading manufacturer and supplier of Air Lubricators in India, is designed to function very well in various industrial applications. Suitable for sizes ranging from 1/4″ to 2″, it provides the option of a high-quality P.C. Bowl or a sturdy Metal Bowl design, providing durability and consistency.
This medium-range product is compatible with ISO VG32 oil and is designed for use in the automotive, pharmaceutical, chemical, food and beverage, textile, and packaging industries.
Our unique lubricating solutions are designed to satisfy your rigorous operational requirements, providing greater quality and efficiency. This product offers reliable performance, while the High Flow Series Air Lubricator is designed to handle high-speed and heavy-duty applications.
- Heavy Duty Design
- Precise Regulating Lubrication
- Simple to Maintenance
- Easy Installation
- Type of Oil to be used ISO VG32
| Technical Specifications | |||||||||||
| Product Name | Air Lubricator | ||||||||||
| Model | AL-S-02 | AL-S-04 | AL-S-05 | AL-S-06 | AL-S-07 | AL-S-08 | |||||
| Size | 1/4″ | 1/2″ | 3/4″ | 1″ | 1.1/2″ | 2″ | |||||
| Opr. Pressure | Upto 10 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Seals | NBR | ||||||||||
| Media | Compressed Air | ||||||||||
