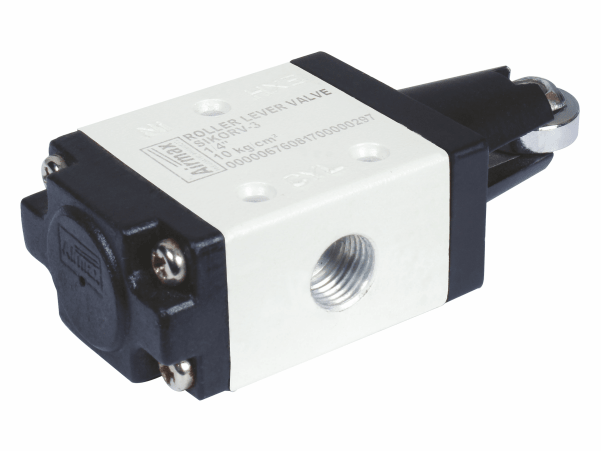

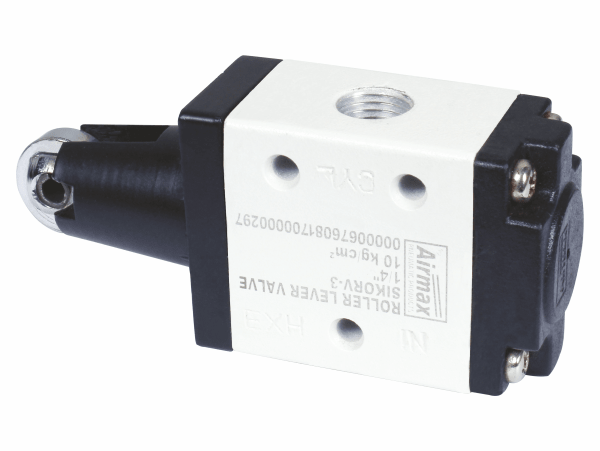

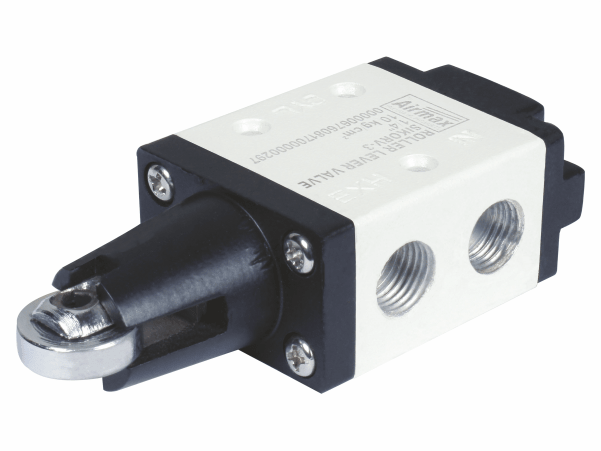

A small, high-performing option for exact regulation in pneumatic systems is the 3/2 Way Roller Lever Valve. In Ahmedabad, India, we have been pioneering the manufacture and export of 3/2 Way Roller Lever Valves since 1992. Its 1/4″ size and pressure range of 1 to 10 Kg/cm² provide tremendous versatility for a multitude of uses.
This valve has a strong chrome-plated spool that guarantees rust-free operation and prolongs its life cycle. It is designed to handle temperatures of up to 80°C.
For versatile performance in applications with varying control requirements, the 5/2 Way Roller Lever Valve is key, while the 3/2 Way Roller Lever Valve works well for more straightforward solutions.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name | 3/2 Way Roller Lever Valve |
| Model | SIKORV – 3 |
| Size | 1/4″ |
| Design | Spool type, |
| Pressure | Upto 1 to 10 Kg/cm² |
| Temperature | 80 °C |
| Leakage | Bubble Tight |
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) | 0.3 |
