Product Details
| Model | SIKORV-5 |
|---|---|
| Size | 1/4" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | 1 to 10 Kg/cm² |
| Temperature | 80°C |
| Leakage | Bubble Tight |
| Media | Compressed Air (Filtered & Lubricated) |

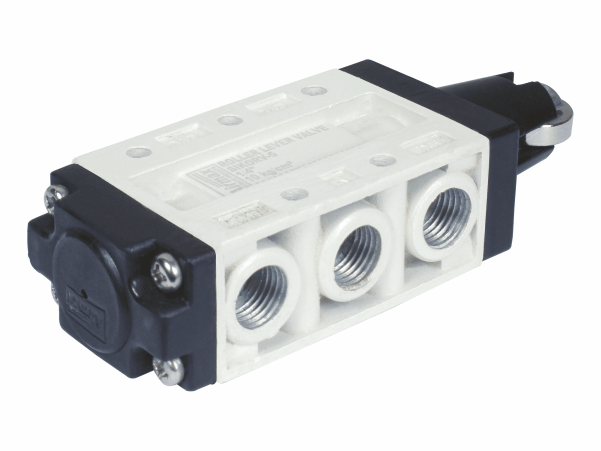

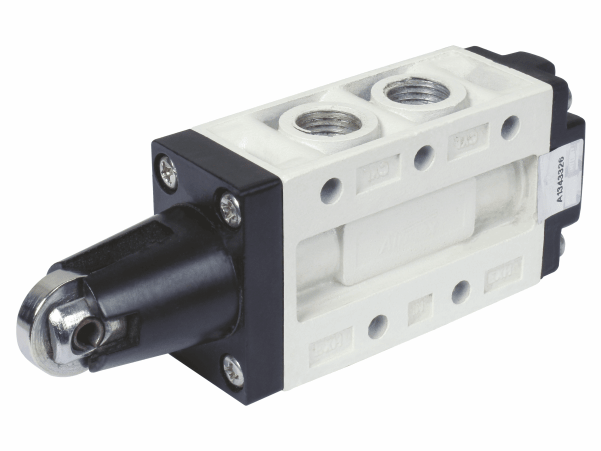

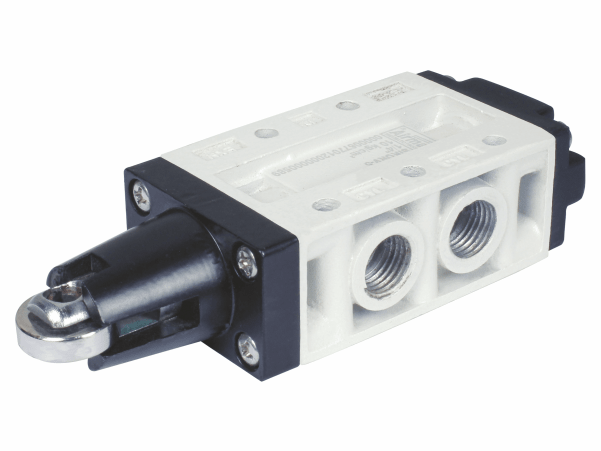

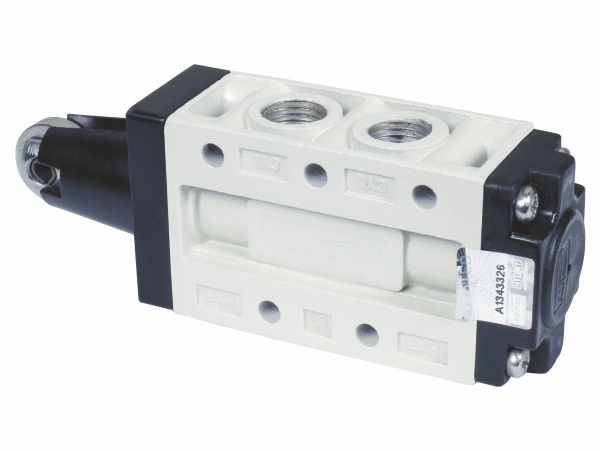

5/2 Way Roller Lever Valve
For smooth, accurate control in pneumatic systems, the Siko Series 5/2 Way Roller Lever Valve (Model: SIKORV-5) is a spool-type valve that is extremely stable. This little valve, weighing only 0.32 kg, maintains a lightweight design while providing effective performance. It is designed for a long lifespan and maximum operation, making it perfect for applications that demand constant switching.
Since 1992, our company has established itself as the leading manufacturer and exporter of 5/2 Way Roller Lever Valves, based in Ahmedabad, India. Our extensive experience in the industry ensures the highest quality and performance standards.
If you’re handling systems that require directional control, the 5/2 Way Roller Lever Valve will meet your needs, and for simpler valve actions, the 3/2 Way Roller Lever Valve is a great option.
Get in touch with us right now to find out how this advanced valve could boost your business processes and offer smooth control over your pneumatic systems.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications | |||||||
| Product Name | 5/2 Way Roller Lever Valve | ||||||
| Model | SIKORV – 5 | ||||||
| Size | 1/4″ | ||||||
| Design | Spool type, | ||||||
| Pressure | Upto 1 to 10 Kg/cm² | ||||||
| Temperature | 80 °C | ||||||
| Leakage | Bubble Tight | ||||||
| Duty Cycle | Compressed Air ( Filtered & Lubricated ) | ||||||
| Weight (Kg) | 0.32 | ||||||
