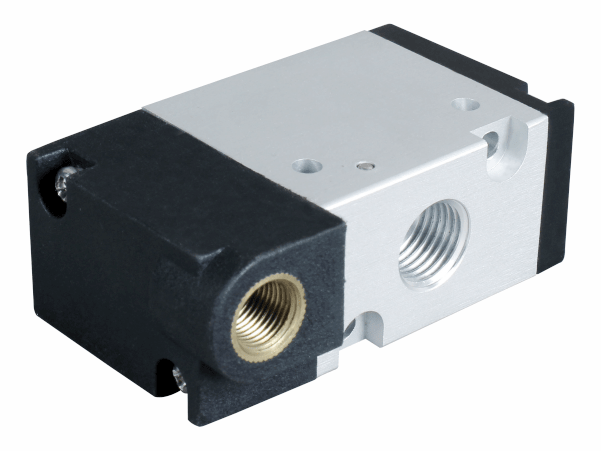

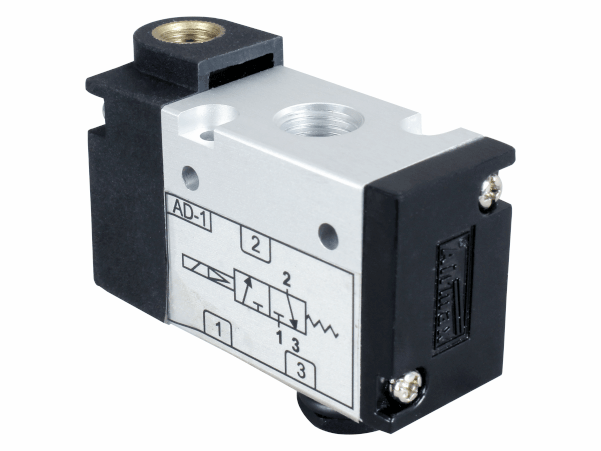

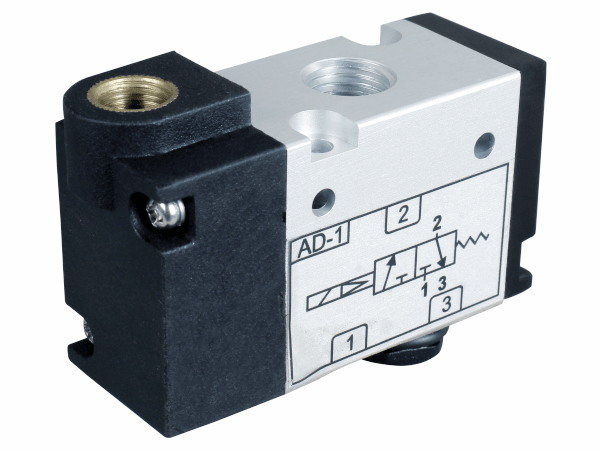

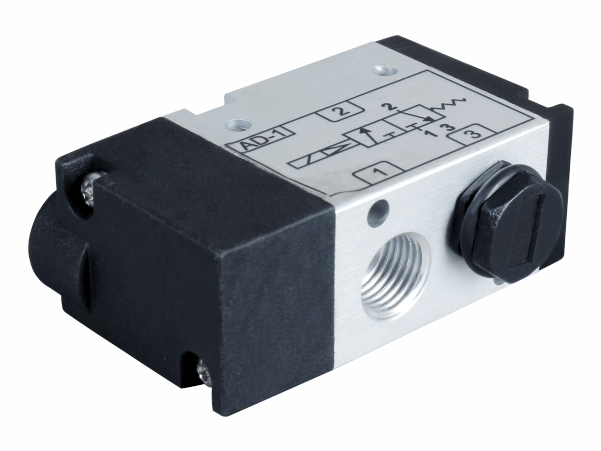

The 3/2 Way Single Pilot Valve is a directional control valve that is used to control the flow of compressed air in a pneumatic system. It is a compact and lightweight valve that is made of high-quality aluminium for durability. The valve has a maximum pressure of 10 kg/cm² and a maximum temperature of 55°C. It is also bubble tight, meaning that it has no leakage.
Although the features of our premium product are revolutionary, our medium-range product RM series 3/2 way single pilot valve choice offers great value without compromising performance.
- Compact Design with Maximum Flow
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name |
3/2 Way Single Solenoid Valve |
| Model |
2ADSP-302 |
2ADSP-304 |
| Size |
1/4″ |
1/2″ |
| Design |
Spool type |
| Pressure |
10 Kg/cm² |
| Temperature |
5 to 55 ˚C |
| Leakage |
Bubble Tight |
| Media |
Compressed Air ( Filtered & Lubricated ) |
| Weight (kg) |
0.2 |
0.49 |
