Dependable Pneumatic Control with 3/2 Way Single Pilot Valves

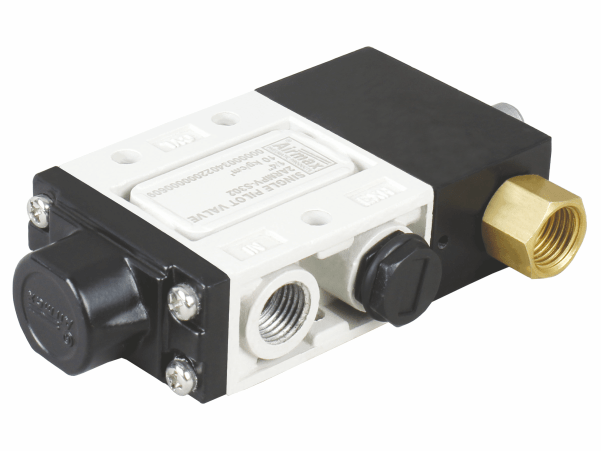

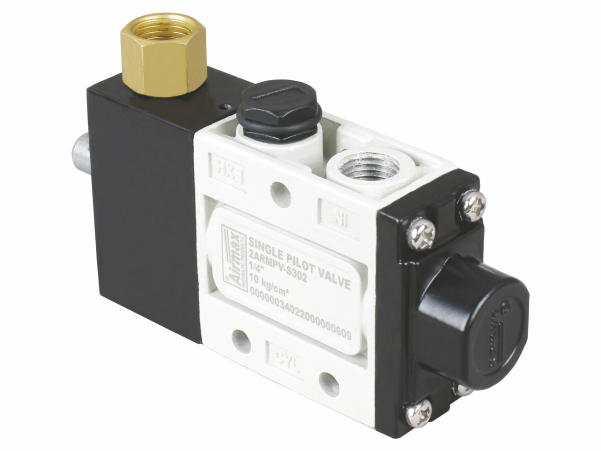

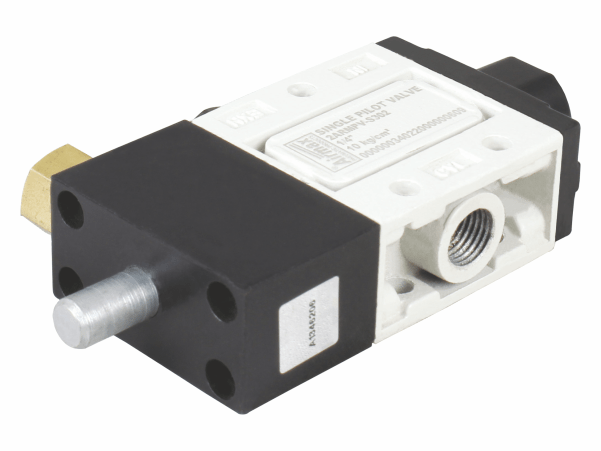

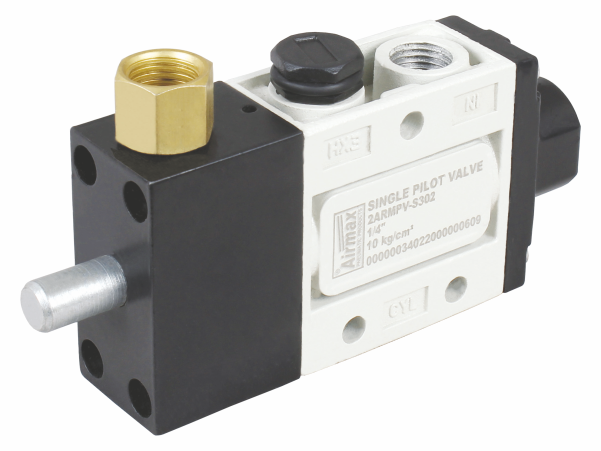

The 3/2 Way Single Pilot Valve is made of aluminum die cast and has a hard chrome plated spool. It is operated by an internal pilot, but can be operated by an external pilot on request. Airmax India manufactures, supplies, and exports these valves in India and worldwide. The product also comes in different models and sizes.
When selecting pneumatic components, consider how the 3/2 Way Single Pilot Valve can meet essential needs alongside the specialized capabilities of the AD – 20 series 3/2 Way Single Solenoid Valve.
- Heavy & Durable design.
- Aluminum Die Cast Standard Grade with Powder Coating.
- Hard Chrome Plated spool for rust free smooth and long life cycle.
- Superior High Grade Seals
- Simple design easy to maintenance
| Technical Specifications |
| Product Name | 3/2 Way Single Pilot Valve |
| Model | 2ARMPV-S-302 | 2ARMPV-S-304 |
| Size | 1/4″ | 1/2″ |
| Orifice | 6.5 | 12.5 |
| Design | Spool type, Internal Pilot Operated ( External Pilot On Request) |
| Pressure | 2.5 to 10 Kg/cm² |
| Temperature | 80 °C |
| Leakage | Bubble Tight |
| Media | Compressed Air ( Filtered & Lubricated ) |
Flow (NLPM)
at 5 BAR | 1100 | 3000 |
| Weight (Kg) | 0.31 | 0.85 |
