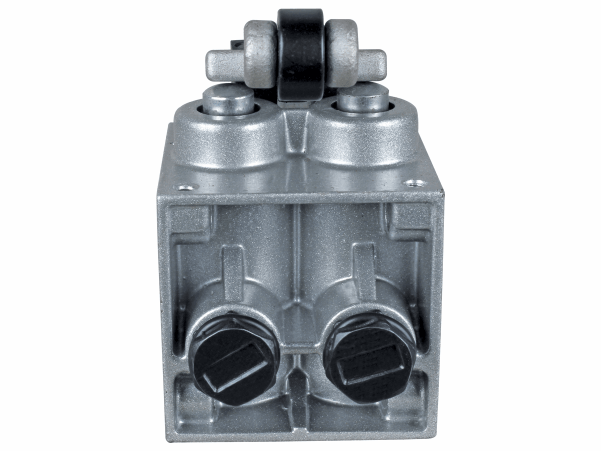

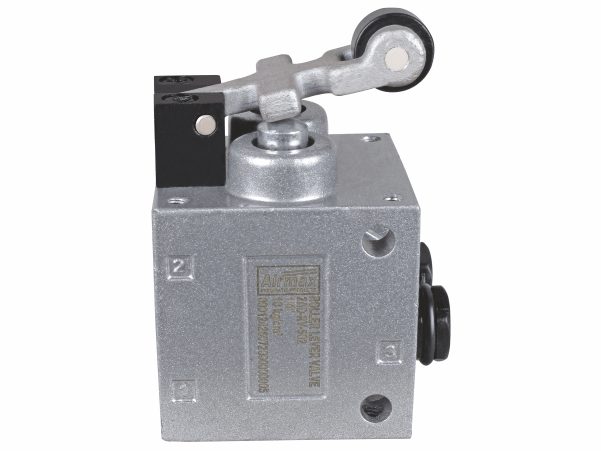

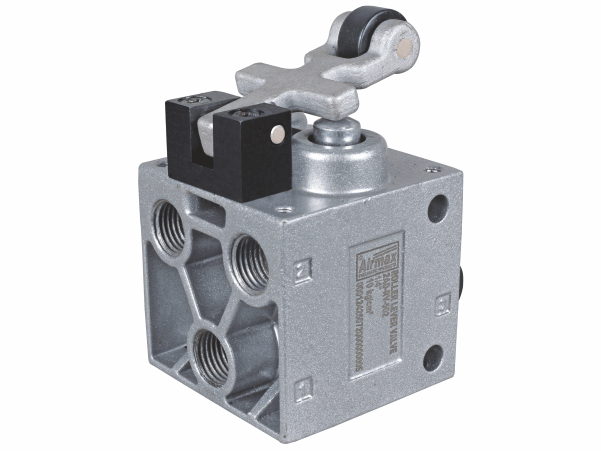

The 5/2 Poppet Type Roller Lever Valve is a directional control valve used in pneumatic systems. It is manufactured by Airmax in Ahmedabad, India, and is also available for supply and export worldwide. The valve is known for its compact and lightweight design, made of aluminum for durability. It has a maximum pressure of 10 kg/cm² and a maximum temperature of 55 °C. Notably, the valve is bubble tight, meaning there is no leakage.
Achieve smooth transitions by integrating a 5/2 poppet type roller lever valve with a 3/2 poppet type finger lever valve for enhanced pneumatic control.
- Compact Design
- Durable
- Light Weight
- Standard Grade MOC
- Smart International Design Look
- Epoxy Treated Surface
- Replaceable & Repairable Parts
| Technical Specifications |
| Product Name | 5/2 Poppet Type Roller Lever Valve |
| Model | 2AD-RV-502 |
| Size | 1/4″ |
| Design | Poppet Type |
| Pressure | Upto 10 Kg/cm² |
| Temperature | Upto 60 ˚C |
| Leakage | Bubble Tight |
Recommended
for Lubrication | ISO VG32 (Servo System 32) |
| Flow | 550 LPM |
| Media | Compressed Air ( Filtered & Lubricated ) |
