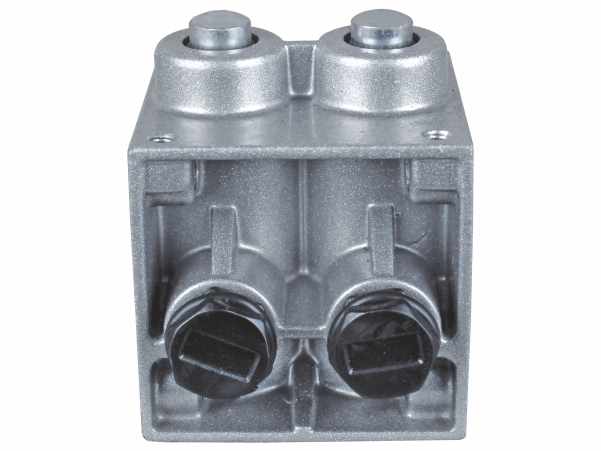

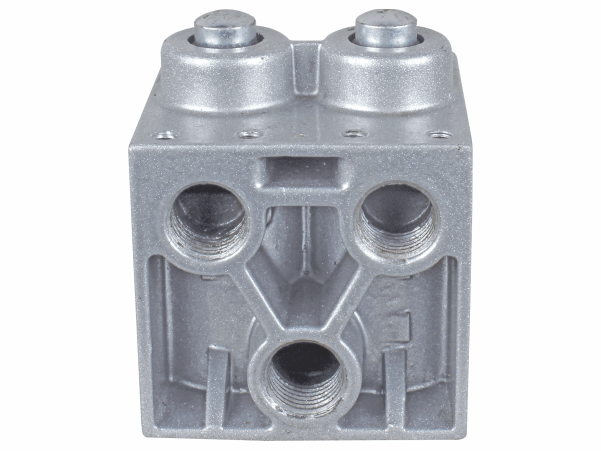

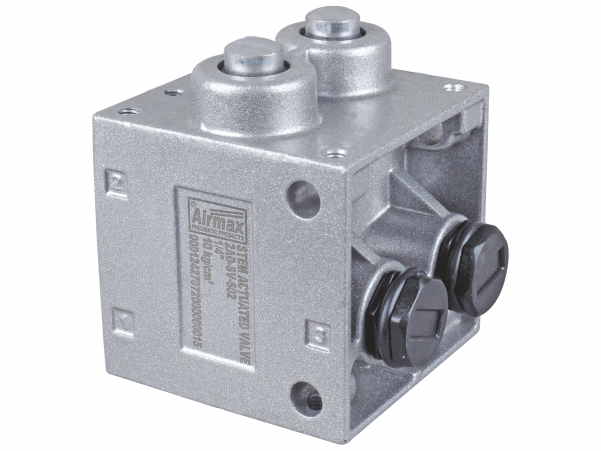

The 5/2 Way Stem Actuated Valve is a compact and durable valve, manufactured by Airmax in Ahmedabad, used to control the flow of compressed air in pneumatic systems. The valve has a poppet design, which allows for quick and efficient operation. It is also available in a variety of sizes and configurations to meet the needs of different applications.
Compare this product to our one of the best-selling AD-20 series model 3/2 Way Stem Actuated Valve to see the differences in features.
- Compact Design and Durable
- Light Weight
- Standard Graded MOC
- Smart International Design Look
- Epoxy Treated Surface
- Replaceable & Repairable Parts
| Technical Specifications |
| Product Name |
5/2 Way Stem Actuated Valve |
| Model |
2AD-SV-502 |
| Size |
1/4″ |
| Design |
Poppet Type |
| Pressure |
Upto 10 Kg/cm² |
| Temperature |
Upto 60 ˚C |
| Leakage |
Bubble Tight |
Recommended
for Lubrication |
ISO VG32 (Servo System 32) |
| Flow |
550 LPM |
| Media |
Compressed Air ( Filtered & Lubricated ) |
