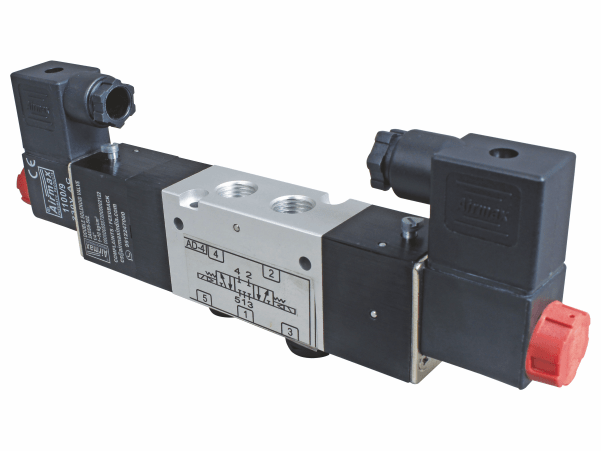

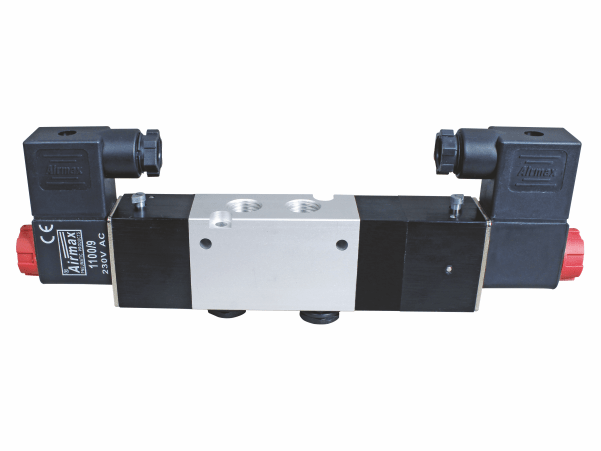

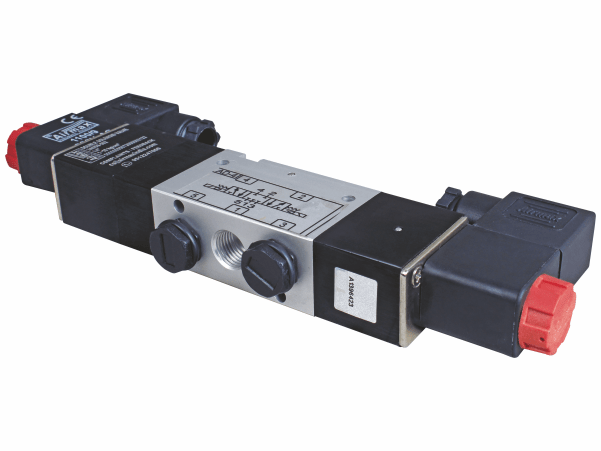

The 5/3 way double solenoid valve is manufactured by Airmax in Gujarat, India. It is designed to control the flow of compressed air in pneumatic systems. The valve is compact and can be used in various applications, including gang manifolds and single manifolds. It also has a manual override function, allowing you to manually control the airflow. The valve comes in two sizes: 1/4″ and 1/2″, and it is rated for pressures up to 10 kg/cm². It is also available in various coil voltages, including 12V, 24V, 48V, 110V, and 230V.
For a more affordable alternative to our top-of-the-line product AMV series 5/3 Way Double Solenoid Valve, explore this budget-friendly option.
- Compact Design with Maximum Flow
- Design Suitable For Gang Manifold up to 12 Valves or Above In Single Manifold
- Push & Rotate Lockable Combined Manual Override Function
- Aluminum Extruded Body with Anodization
| Technical Specifications |
| Product Name |
5/3 Way Double Solenoid Valve |
| Model |
3ADDS – 502 |
3ADDS – 504 |
| Size |
1/4″ |
1/2″ |
| Design |
Spool type, Internal Pilot Operated (External Pilot On Request) |
| Pressure |
1 to 10 Kg/cm² |
| Temperature |
5 to 55 ˚C |
| Leakage |
Bubble Tight |
| Duty Cycle |
Continuous Rated |
| Protection |
IP 65 Class F |
| Connector |
Din 43650 B |
| Response Time |
15 msec ON / 25 msec OFF |
| Coil Voltage |
12V, 24V, 48V, 110V, 230V, (AC / DC) 50 / 60 Hz
( Non Std. Voltage Available On Request ) |
| Media |
Compressed Air ( Filtered & Lubricated ) |
| Weight (Kg) |
0.315 |
0.75 |
