5/3 Way Double Solenoid Valve 3 Position

Trusted Manufacturer of 5/3 Way Double Solenoid Valve 3 Position in India

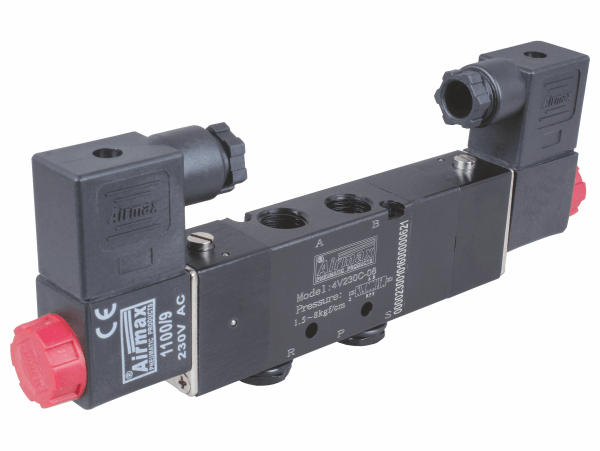

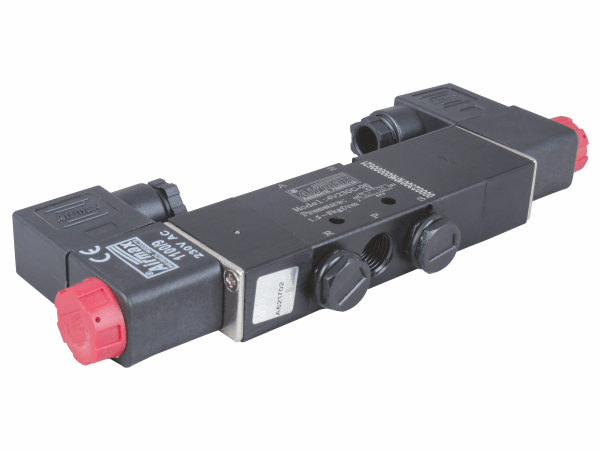

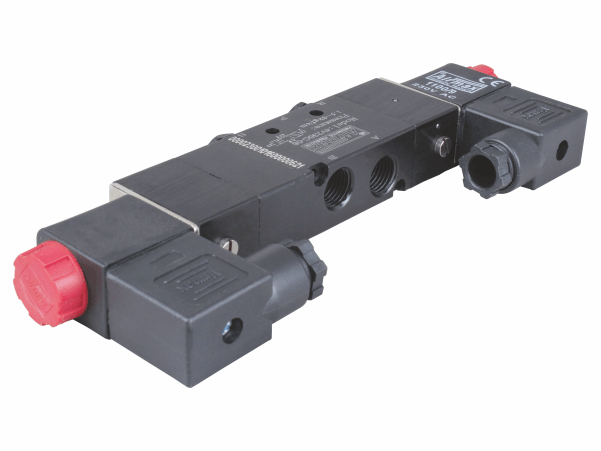

Magnified View of 5-3 Double Solenoid Valve in 3 Position Configuration for Precise Flow Control Magnified View of 5/3 Way Double Solenoid Valve 3 Position on clear background by Airmax India Closed View of 5/3 Way Double Solenoid Valve 3 Position on white background by Airmax India Trusted Manufacturer of 5/3 Way Double Solenoid Valve 3 Position in India

Product Details

ModelAMV 4V 230
Size1/4”, 1/2”
BodyAluminium Press. Die Cast
Valve TypePAN | PHN | PRN
SealsNitrile
Pressure1.5 to 8 Kg/Cm²
Temperature80°C
MediaCompressed Air (Filtered & Lubricated)
Volt12V, 24V, 48V, 110V, 230V, (AC / DC)
