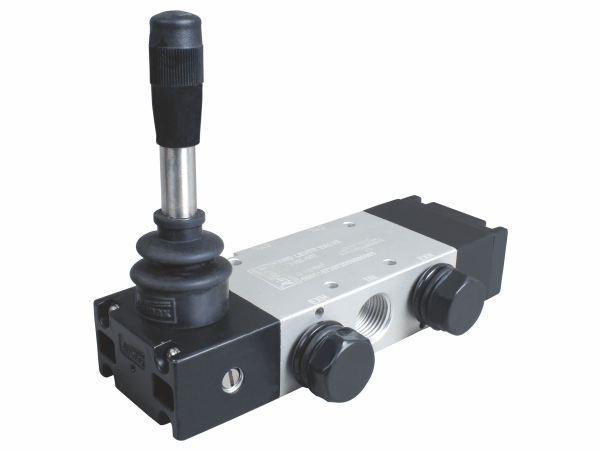

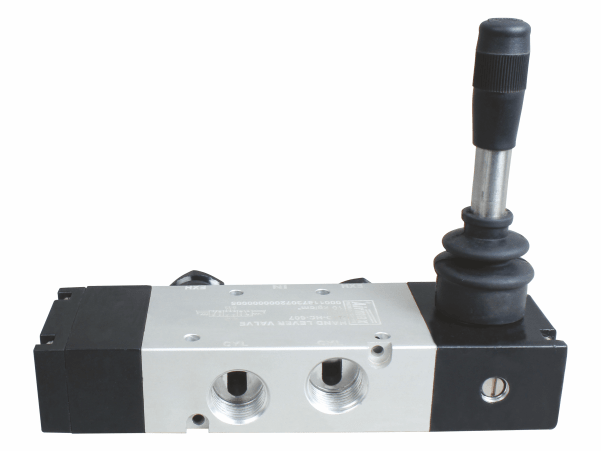

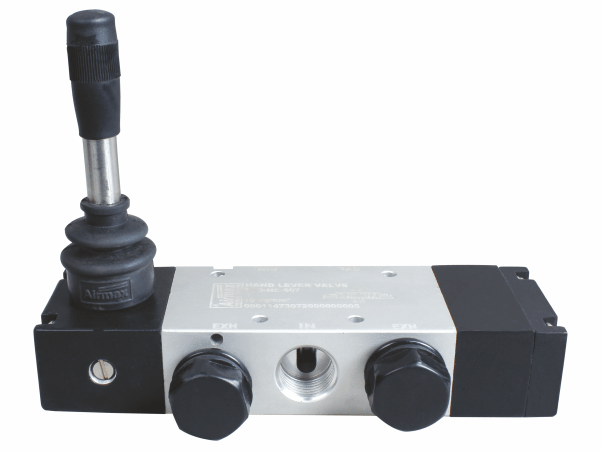

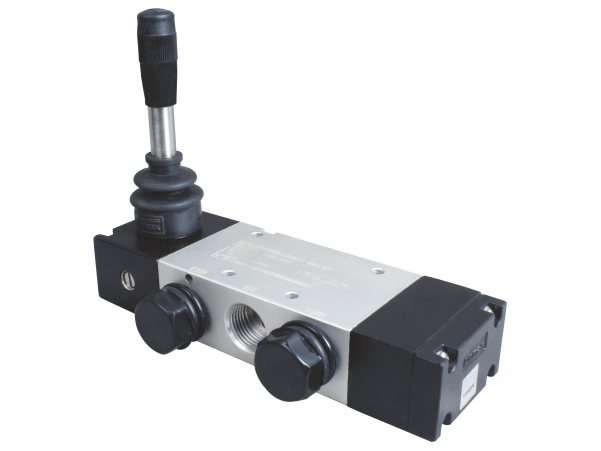

Airmax’s 5/3 Way Hand Lever Valve with Center Spring is a dependable solution for controlling airflow in pneumatic systems. This compact and durable valve features a spring return detent mechanism, ensuring automatic return to the center position upon lever release. It’s available in two sizes (1/4″ and 1/2″) to cater to various application needs.
The valve boasts an aluminum body and a nitrile seal for strength and reliability. It operates within a pressure range of 10 kg/cm² and a temperature range of 5 to 55 °C. Additionally, the valve provides a bubble tight seal, eliminating air leakage.
Airmax Pneumatics, a leading manufacturer, supplier, and exporter of pneumatic control solutions in India and globally, offers 5/3 way hand lever valve detent in its premium AD-20 Series.
- Compact Design with Maximum Flow
- Aluminum Extruded Body with Anodized
| Technical Specifications |
| Product Name | 5/3 Way Hand Lever Valve Center Spring |
| Model | 3AD-HD-605 | 3AD-HD-607 |
| Size | 1/4″ | 1/2″ |
| Type | Spring Return | Detent |
| Design | Spool type |
| Pressure | 10 Kg/cm² |
| Temperature | 5 to 55 ˚C |
| Flow rate in SCFM Lts. / Min @6 KG | 42 | 123 |
| Recommended Oil For Lubrication | ISO VG32 |
| Leakage | Bubble Tight |
| Media | Compressed Air ( Filtered & Lubricated ) |
| Weight | 0.3 | – |
