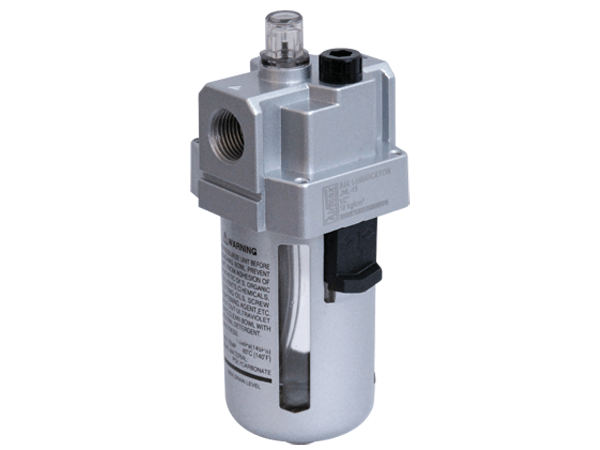

Pneumatic Air Lubricator
Home
»
FRL Units
»
JH Series
»
Pneumatic Air Lubricator
Product Details
Model
JHL
Size
1/4", 3/8", 1/2", 3/4", 1"
Body
Aluminium Pressure Die Cast
Seals
NBR
Pressure
10 Kg/cm²
Temperature
50˚C
Media
Compressed Air
Download
Inquiry
Description
Features
Technical Specifications
As per ISO 6301 – 1
Safety steel bowl guard – Push in turn type
Modular Mounting Type
Fine Adjustment of Lubrication
Lubrication Proportional to Flow
Type of Oil to be used ISO VG32
Technical Specifications
Product Name
Pneumatic Air Lubricator
Model
JHL-13
JHL-14A
JHL-14B
JHL-15
JHL-17A
JHL-17B
Size
1/4″
1/4″
3/8″
1/2″
3/4″
1″
Opr. Pressure
10 Kg/cm² (max.)
Temperature
50 °C (max.)
Seals
NBR
Bowl Capacity (ml)
20
57
57
152
200
200
Installation
Vertical ( As in the Picture )
Media
Compressed Air
Weight (Approx.)
0.22
0.3
0.3
0.56
1.08
1.08
