Product Details
| Model | AR-MD |
|---|---|
| Size | 1/4", 3/8", 1/2" |
| Body | Aluminium Pressure Die Cast |
| Seals | Hi-Nitrile |
| Pressure | Up to 10 Kg/cm² |
| Temperature | Up to 50˚C |
| Media | Compressed Air |
| Piston | polyacetal |

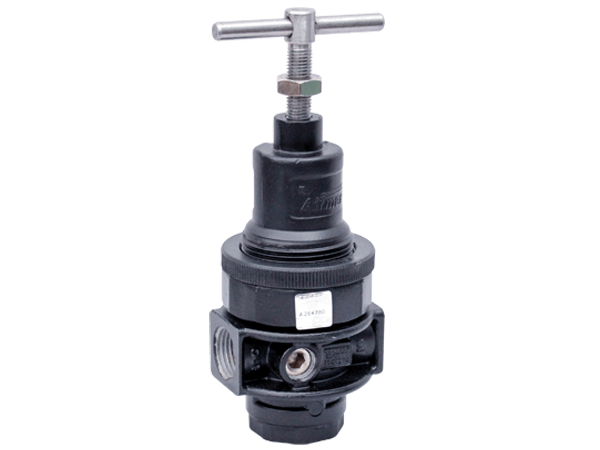

Air Regulator
With the Air Regulator from Airmax Pneumatics, a reputable air regulator manufacturer and supplier in India, you can guarantee precise air pressure management. It is perfect for demanding industrial settings because of its great strength and resistance to corrosion, which come from its sturdy aluminum pressure die-cast body.
This regulator’s Hi-Nitrile seals guarantee leak-proof operation and increase its useful life. With this high-end FRL component, you can maintain steady airflow, reduce pressure variations, and increase the effectiveness of your pneumatic system.
The Affordable MIDI Series Air Regulator offers reliable pressure management for general use, while the Medium Range Standard Series Air Regulator is ideal for systems needing greater precision and flow capacity.
- Design for Heavy Duty Application
- High Flow Capacity
- Durable Design
| Technical Specifications | |||||||||||
| Product Name | Air Regulator | ||||||||||
| Model | AR-MD-6 | AR-MD-10 | AR-MD-15 | ||||||||
| Size | 1/4″ | 3/8″ | 1/2″ | ||||||||
| Inlet Pressure | Upto 10 Kg/cm² (max) | ||||||||||
| Outlet Pressure | 0 to 8 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Adjusting Setting | Turn ‘T’ Type Key Clock wise to increase pressure | ||||||||||
| Flow SCFM at 5 Bar | 40 | 65 | 100 | ||||||||
| Bowl Capacity | 45 Ml. | ||||||||||
| Media | Compressed Air | ||||||||||
| Weight | 0.472 | 0.471 | 0.461 | ||||||||
