Product Details
| Model | AR-S |
|---|---|
| Size | 1/4" to 2" |
| Body | Aluminium Press. Die Cast |
| Seals | Nitrile |
| Pressure | Up to 10 Kg/cm² |
| Temperature | Up to 50˚C |
| Media | Compressed Air |
| Diaphragm | P.U |

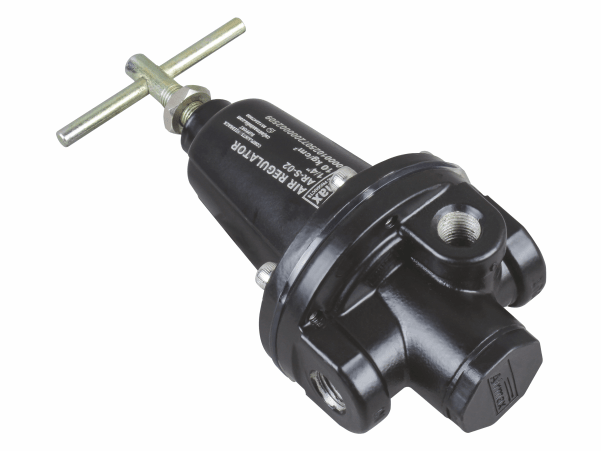

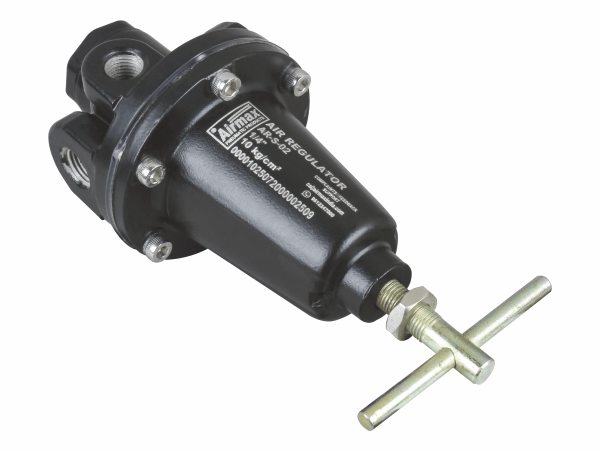

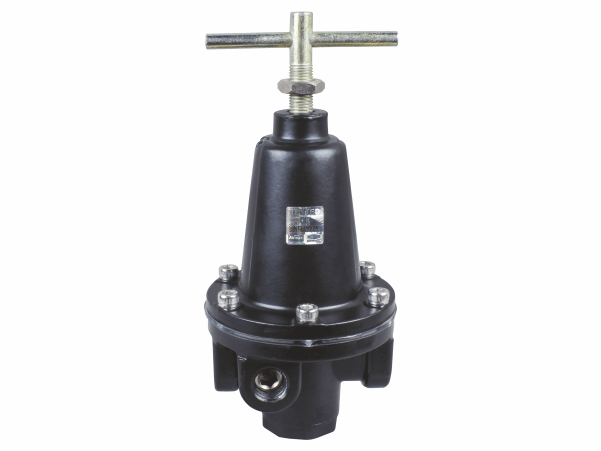

Air Regulator
Accurate Regulation with Durable P.U. Diaphragm
For industrial applications, our Standard Series AR-S Air Regulator provides accuracy. This medium-range product has a sturdy P.U. diaphragm that guarantees stable operation even under extreme circumstances, and it is designed to function at pressures of up to 10 kg/cm².
It provides the best control and is appropriate for the food and beverage processing, pharmaceutical, automotive, textile, and packaging sectors. As an Air Regulator manufacturer and supplier in India, we are dedicated to quality and innovation in each product, offering dependable solutions that satisfy the exacting requirements of today’s industrial settings.
While the Premium Series Air Regulator provides finer pressure control for specific applications, the Standard Series Air Regulator provides consistent performance.
- High Flow Design
- Heavy Duty & Durable Design
- Comfortable to all industrial use.
| Technical Specifications | |||||||||||
| Product Name | Air Regulator | ||||||||||
| Model | AR-S-02 | AR-S-04 | AR-S-05 | AR-S-06 | AR-S-07 | AR-S-08 | |||||
| Size | 1/4″ | 1/2″ | 3/4″ | 1″ | 1.1/2″ | 2″ | |||||
| Opr. Pressure | Upto 10 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Seals | NBR | ||||||||||
| Adjusting Setting | Turn “T” Type key clock wise to increase pressure | ||||||||||
| Media | Compressed Air | ||||||||||
