Product Details
| Model | JHR |
|---|---|
| Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Body | Aluminium Pressure Die. Cast |
| Seals | NBR |
| Pressure | 10 Kg/cm² |
| Temperature | 50˚C |
| Media | Compressed Air |

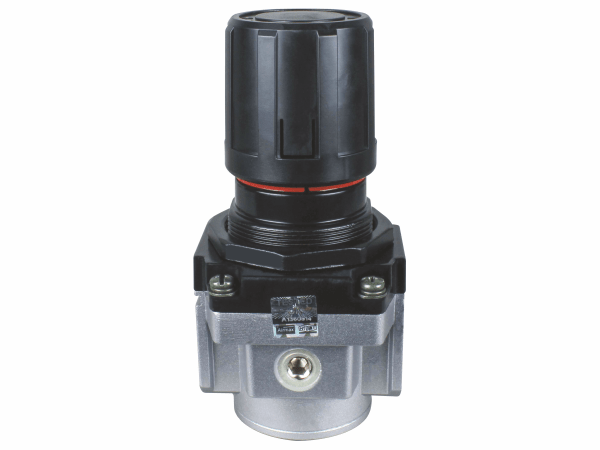

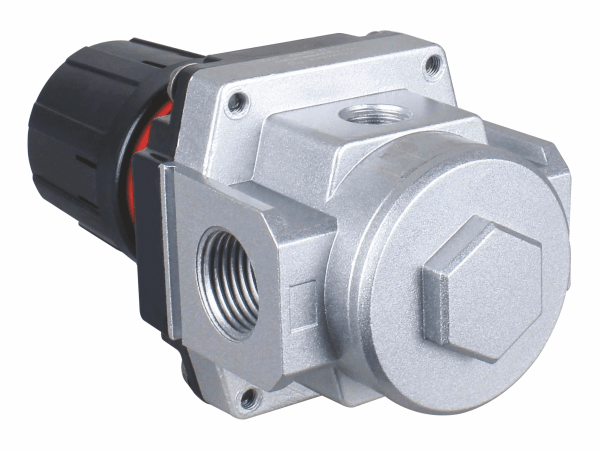

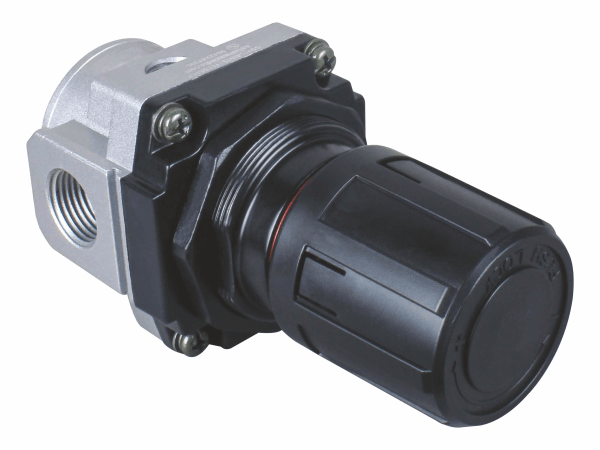

Air Regulator
Ideal for System Upgrades: Premium Air Regulator
With our Air Regulator, you can ensure accurate airflow management. It is intended for best performance and life expectancy. This regulator is designed to meet ISO 6953-1 standards and includes a pressure gauge for reliable monitoring.
Since 1992, it has been available for supply and export around the world, serving sectors that require constant and reliable air regulation. Whether you’re improving your system or starting over, this high-quality Air Regulator surpasses international regulations.
While our Premium Series Air Regulator offers exceptional performance for demanding applications, you can also explore our Standard Series Air Regulator for a reliable, cost-effective solution for less intensive needs.
- As per ISO 6953 – 1
- Safety steel bowl guard – Push in turn type
- Suitable for Panel and Modular Mounting Type
- Modular Mounting Type
- Diaphragm Operated
- Manual drain push type
- Faster Response
- Sinter Bronze Filter Element
- Maximum Flow Rate
| Technical Specifications | |||||||||||
| Product Name | Air Regulator | ||||||||||
| Model | JHR-13 | JHR-14A | JHR-14B | JHR-15 | JHR-17A | JHR-17B | |||||
| Size | 1/4″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | |||||
| Opr. Pressure | 10 Kg/cm² (max.) | ||||||||||
| Temperature | 50 °C (max.) | ||||||||||
| Pressure Gauge Port | 1/8″ | 1/8″ | 1/8″ | 1/8″ | 1/4″ | 1/4″ | |||||
| Seals | NBR | ||||||||||
| Media | Compressed Air | ||||||||||
| Weight (Approx.) | 0.27 | 0.41 | 0.41 | 0.84 | 1.19 | 1.19 | |||||
