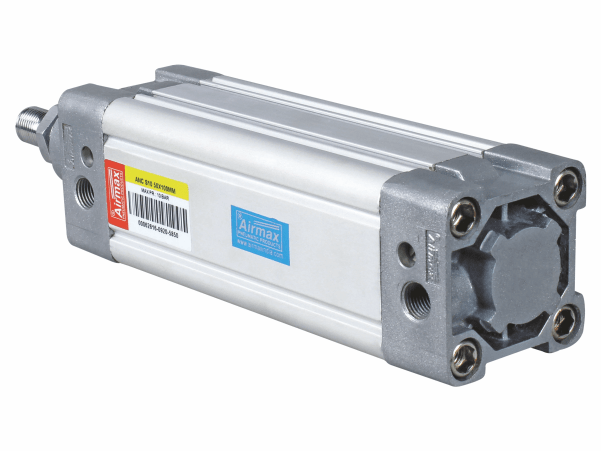

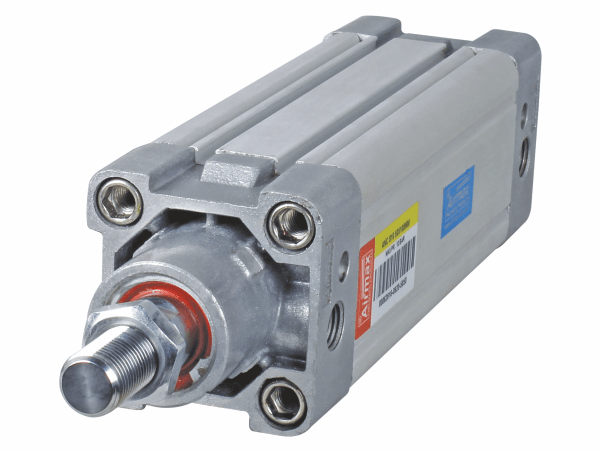

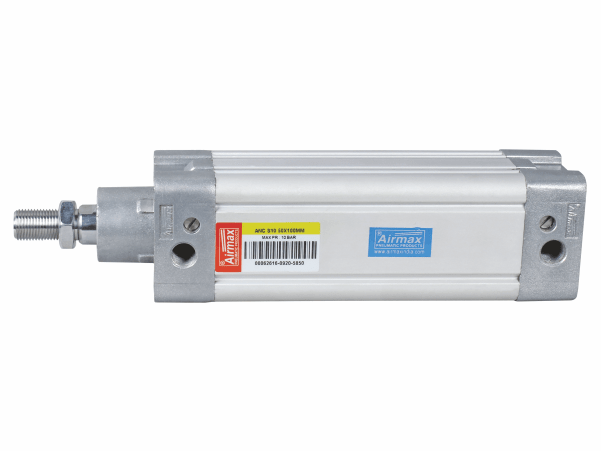

ANC Square Pneumatic Cylinder

ANC Pneumatic Cylinder
ANC Pneumatic Cylinder ANC Pneumatic Cylinder ANC Pneumatic Cylinder ANC Pneumatic Cylinder
Summary
product image
Author Rating
1star1star1star1stargray
Aggregate Rating
no rating based on 0 votes
Brand Name
Airmax
Product Name
ANC Square Pneumatic Cylinder

Product Details

Bore (mm) 32 l 40 l 50 l 63 l 80 l 100 l 125
Piston Rod 12 l 16 l 20 l 20 l 25 l 025 l 032
Stroke 25mm to 500mm (Up to 2000mm)
Model ANC
Seals Buna – N / Viton / P.U. / Hi-Nitrile (Viton on Request)
Pressure 0.5 ~ 10 kg/cm²
Temperature -20°C ~ 80°C Max.
Tube Aluminium Hard Anodized
End Cover Aluminium Pressure Die Cast
Mounting

Female Clevise | Wall Bracket Mounting | Eye Rod Mounting | Fork Mounting Clevis Foot Bracke | Clevis Foot Mounting | Foot Mounting | Front & Rear Trunnion Mounting | Male Clevis | Pivot Mounting | Rod End Aligner Mounting Front/Rear Flange Mounting | Wall Bracket Mounting Female & Male Clevis | Center Trunnion Mounting

Media Compressed Air - Filtered - Lubricated
Note High temperature with Viton 0°C to 180°C available
